GRADE-8 LIFTING EYE BOLTS

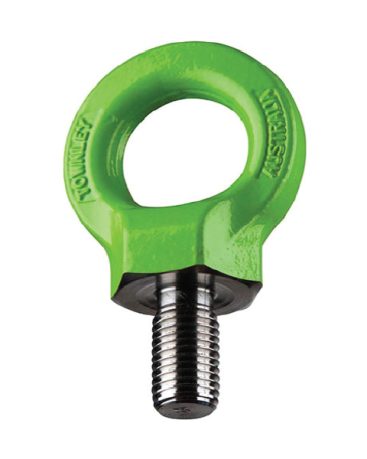

Grade-8 Eye Bolts offer up to four times higher lifting capacity in certain applications. The larger internal eye diameter provides a versatile alternative to standard Grade-4 eyebolts. Each eyebolt is clearly stamped with the permitted F2 WLL (safe for non-axial lifts). F1 WLL indicates loads aligned with the threaded axis, allowing up to four times higher lifting capacity while maintaining a 4:1 safety factor.
- Description
Description
Features
- Forged From High Tensile Alloy Steel
- Hi-Visibility Powder Coated Finish
- Electromagnetic crack testing to AS 1171
- Long shanks and special thread forms made to order.
Specifications

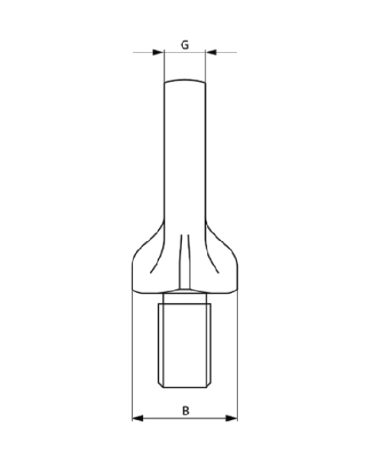

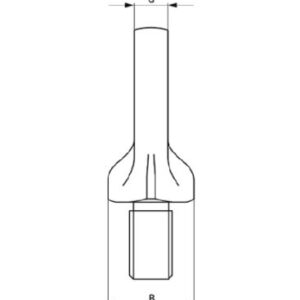

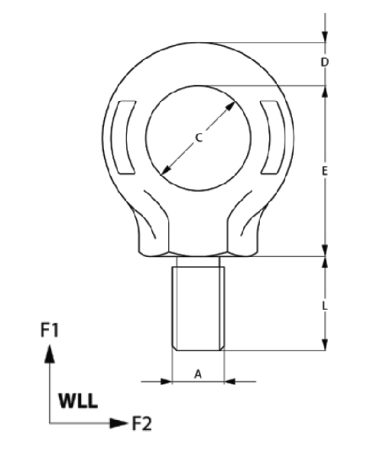

| WLL F1 (t) | WLL F2 (t) | SIZE A | WEIGHT (kg) | B | C | D | E | G | L |
|---|---|---|---|---|---|---|---|---|---|
| 0.8 | 0.2 | M08 | 0.17 | 27 | 30 | 12 | 48 | 10 | 21 |
| 1 | 0.25 | M10 | 0.17 | 27 | 30 | 12 | 48 | 10 | 21 |
| 1.6 | 0.4 | M12 | 0.17 | 27 | 30 | 12 | 48 | 10 | 21 |
| 4 | 1 | M16 | 0.37 | 34 | 34 | 15 | 56 | 14 | 28 |
| 6 | 1.6 | M20 | 0.6 | 41 | 40 | 17 | 70 | 16 | 35 |
| 7 | 2 | M22 | 1.1 | 50 | 50 | 20 | 70 | 16 | 42 |
| 8 | 2.5 | M24 | 1.1 | 50 | 50 | 20 | 85 | 18 | 42 |
| 8 | 2.5 | M27 | 1.1 | 50 | 50 | 20 | 85 | 18 | 42 |
| 12 | 3 | M30 | 2.6 | 60 | 60 | 26 | 105 | 26 | 52 |
| 12 | 3 | M33 | 3.7 | 72 | 72 | 34 | 120 | 32 | 58 |
| 16 | 4 | M36 | 3.7 | 72 | 72 | 34 | 120 | 32 | 63 |
