The ER2 Electric Chain Hoist manufactured by KITO is environmentally friendly
with its new compact, lightweight and energy efficient design. Offering thermal
protection to prevent overheating, upper and lower limit switches, CH (Counter/
Hour) meter and variable speed inverter as standard equipment (Inverters
installed on 2 speed models only). Available in capacities ranging from 250kg to

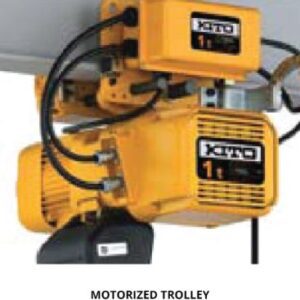

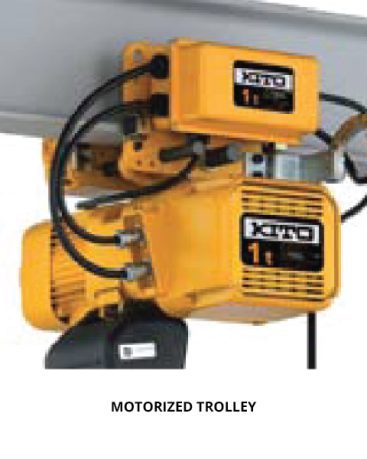

20 tonnes in optional lift heights. Coupled with the new MR2 Motorised Trolley,
the ER2/MR2 combination allows for easier and accurate load positioning in the
work place. Applications include mining, construction, engineering, manufacturing,
health care and food factory.
ELECTRIC CHAIN HOISTS KITO
- Description
Description
Features
- All Hitachi models are manufactured to comply with AS1418.2
- Operation: fully contactorised with high rated contractors and pendant controls; both fitted with mechanical interlocks and 24 Volt control. Optional IP65 pendant including E-Stop available
- Safety Limits: full current and shunt limit switches operate in both directions of hook travel
- Overload Limiter: this electro-mechanical device is exclusive to the Hitachi range and boasts a far superior overload protection device than the slipping clutch method. Available on all Hitachi models
- Braking: all models are fitted with an electro-magnetic, self-adjusting disc type brake to the gearbox and the ‘F’ models have an additional auxiliary centrifugal brake fitted to the motor
- Completely enclosed design. Entire mechanism including; the motor, dual brake system, gears, rotating parts and electrical system can be operated under severe conditions
- Chain Bucket: noiseless design with flexible mounting
- High quality Grade 80 zinc or nickel plated load chain supplied as standard
- IP54 protection rating on all electric hoists and trolleys
- Motor thermal protection on all Hitachi models
- Optional radio remote control
- Ambient temperature requirement of -10 to 40 degrees
- Class M4 inclusive of 180 starts per hour
- Reverse phase protection relay on all models excluding; 250kg, 500kg and all single phase models
- Special low headroom hoist and trolley arrangements available to suit tight headroom applications
- Electric trolleys are fitted with Guide Rollers as standard to reduce wear and ensure suitability for curved beam applications
Specifications
| SINGLE SPEED | DUAL SPEED | |
|---|---|---|
| Rated capacity | Single speed - 250kg to 20t | Dual speed - 250kg to 10t plus |
| Voltage | 380-415 V 60hz | 380-415 V 50Hz |
| Control voltage | 24V | 24V |
| Duty rating | Single speed - 60% ED (60 min.) | Dual speed - 40/20% ED (30/10 min.) |
| Classification | M4, M5, M6 (ISO); 1 Am, 2m, 3m (FEM); H4 (ASME) | M4, M5, M6 (ISO); 1 Am, 2m, 3m (FEM); H4 (ASME) |
| Motor insulation | Class F for 380-415-50 | Class F for 380-415-50 |
| Enclosure | Hoist body - IP55, Push button control - IP 65 | Hoist body - IP55, Push button control - IP 65 |
| Suspension varieties | Hook, manual trolley, motorized trolley | Hook, manual trolley, motorized trolley |
| Operating temperature | -20 to 40 °C (-4 to 104 °F) | -20 to 40 °C (-4 to 104 °F) |
| Operating humidity | 85% RH or less | 85% RH or less |
