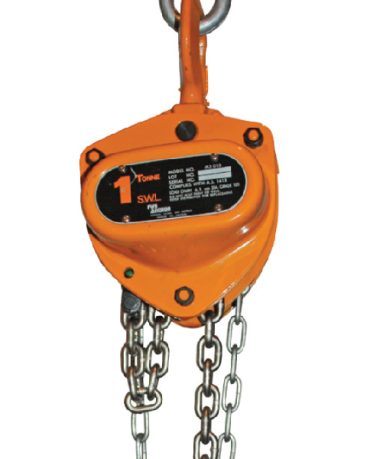

The M3 Series Chain Blocks, manufactured by KITO in Japan, have been designed for maximum durability and safety in continuous heavy-duty applications. Available in standard lift heights of 3 and 6 metres, these superior units can also be close-coupled to push or geared trolleys, offering further reduction in headroom where space is limited.
- Description
Description
Features
- Optional lift heights also available
- The 250kg capacity, CX003 Chain Block from KITO is equipped with an Overload Limiter as standard
Specifications
| WLL (t) | WEIGHT (kg) | STANDARD LIFT (m) | HAND EFFORT TO LIFT MAX LOAD N (kg) | HEADROOM MIN C (mm) | CHAIN DIA (mm) & NO. OF FALLS |
|---|---|---|---|---|---|
| 0.25 | 2.4 | 2.5 | 147 (15) | 217 | 3.2 x 1 |
| 0.5 | 10.0 | 3.0 | 235 (24) | 285 | 5.0 x 1 |
| 0.5 | 14.5 | 6.0 | 235 (24) | 285 | 5.0 x 1 |
| 1.0 | 11.5 | 3.0 | 284 (29) | 295 | 6.3 x 1 |
| 1.0 | 16.9 | 6.0 | 284 (29) | 295 | 6.3 x 1 |
| 1.5 | 14.5 | 3.0 | 343 (35) | 350 | 7.1 x 1 |
| 2.0 | 20.0 | 3.0 | 353 (36) | 375 | 8.0 x 1 |
| 2.0 | 26.9 | 6.0 | 353 (36) | 375 | 8.0 x 1 |
| 3.0 | 24.0 | 3.0 | 363 (37) | 510 | 7.1 x 2 |
| 3.0 | 33.6 | 6.0 | 363 (37) | 510 | 7.1 x 2 |
| 5.0 | 41.0 | 3.0 | 333 (34) | 600 | 9.0 x 2 |
| 5.0 | 54.2 | 6.0 | 333 (34) | 600 | 9.0 x 2 |
| 7.5 | 63.0 | 3.0 | 343 (35) | 770 | 9.0 x 3 |
| 10.0 | 83.0 | 3.0 | 353 (36) | 760 | 9.0 x 4 |
| 10.0 | 106.7 | 6.0 | 353 (36) | 760 | 9.0 x 4 |
