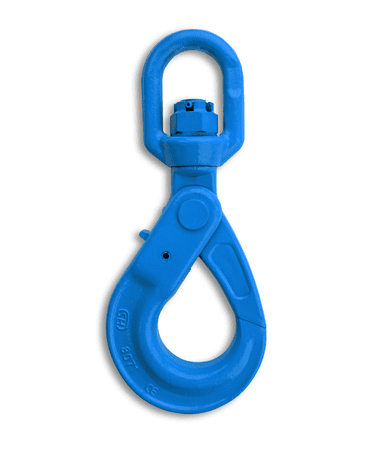

SELF-LOCKING HOOK – SWIVEL
Grade 100 Swivel Self-Locking Hooks feature a plain bearing swivel that allows the hook to rotate, helping to reduce sling twist during lifting. Designed for secure load handling, they automatically close when the load is engaged and remain locked until the trigger is pressed.
- Description
Description
Features
- Marked with chain size, designation, grade with manufacturer quality mark
- Manufactured from G100 alloy steel with a safety factor of 4 to 1
- Manufactured and tested in accordance to AS 3776
- Test Certificates available upon request
- Spare Trigger Kits are available
Specifications

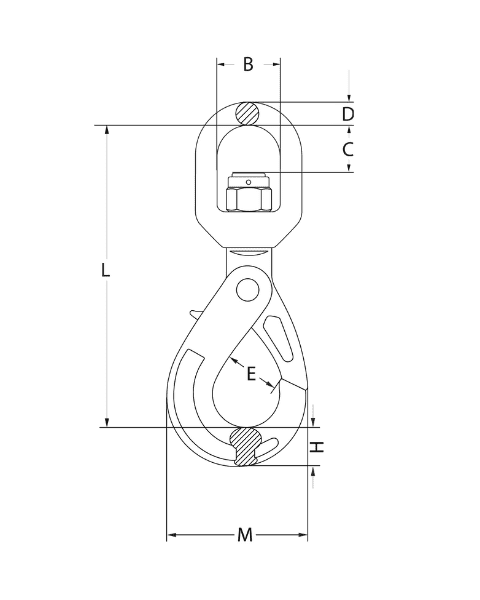

| SIZE (mm) | WLL (tonne) | WEIGHT (kg) | B (mm) | C (mm) | D (mm) | E (mm) | H (mm) | M (mm) | L (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 6 | 1.4 | 0.6 | 32.5 | 23 | 11.5 | 28 | 20 | 70 | 180 |
| 8 | 2.5 | 1.1 | 36 | 28 | 13 | 35.5 | 26 | 90 | 229 |
| 10 | 4 | 2 | 42 | 35 | 15.5 | 45 | 30 | 109 | 269 |
| 13 | 6.7 | 4 | 50 | 40 | 17 | 53.5 | 40.5 | 138.5 | 330 |
| 16 | 10 | 6.8 | 61 | 56 | 21.5 | 62 | 50.5 | 170.5 | 413 |
| 20 | 16 | 12.5 | 72 | 62 | 26 | 76.5 | 62 | 192.5 | 463 |
| 22 | 19 | 17.1 | 97 | 94 | 33 | 80 | 66 | 205 | 572 |
Subject to change without notice
