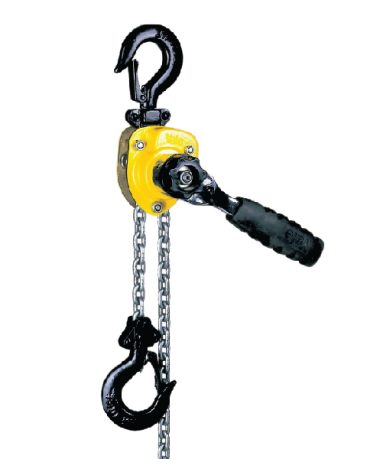

With a Working Load Limit of 250?kg or 500?kg, the Yale Handy is a lightweight and compact ratchet lever hoist designed for easy handling—even in confined spaces. Its versatility makes it indispensable across a wide range of applications in industry, trade, and service sectors.
- Description
Description
Features
- The enclosed design protects the internal parts from contamination
- The short handlever is fitted with an ergonomic rubber grip
- All parts of the disc type load brake are manufactured from high quality materials and are corrosion protected
- Standard free chaining device to quickly attach the load or to pull the chain through the hoist in both directions
- Alloyed steel link chain with zinc-plated resp. yellow chromate finish, in accordance with national and international standards and regulations
- Drop forged suspension and load hooks are made from non-aging, high tensile steel and fitted with robust safety latches
Specifications
| CAPACITY WLL (kg) | FALLS OF LOAD CHAIN | CHAIN DIMENSIONS (mm) | LIFTING HEIGHT (m) | CLOSED HEIGHT (mm) | WEIGHT STD HOL (kg) |
|---|---|---|---|---|---|
| 250 | 1 | 4 x 12 | 1.5 | 240 | 2.2 |
| 500 | 1 | 4 x 12 | 1.5 | 282 | 2.8 |

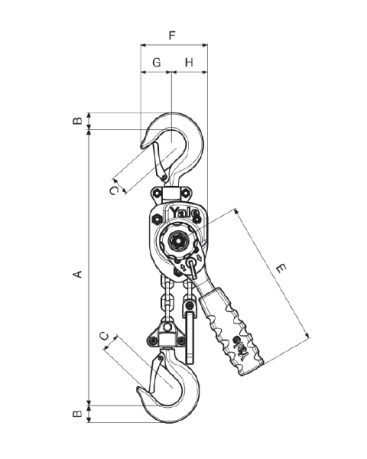

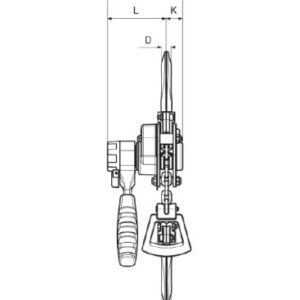

| DIMENSIONS (mm) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | J | K | L |
| 240 | 17 | 21 | 12 | 160 | 72 | 33 | 39 | 98 | 21 | 77 |
| 282 | 20 | 24 | 14 | 160 | 104 | 38 | 66 | 116 | 36 | 80 |
