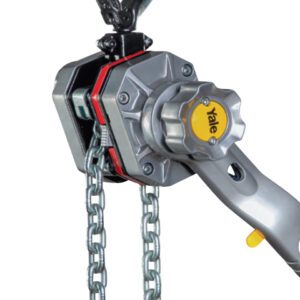

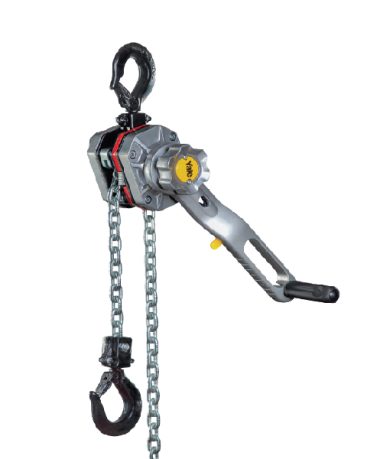

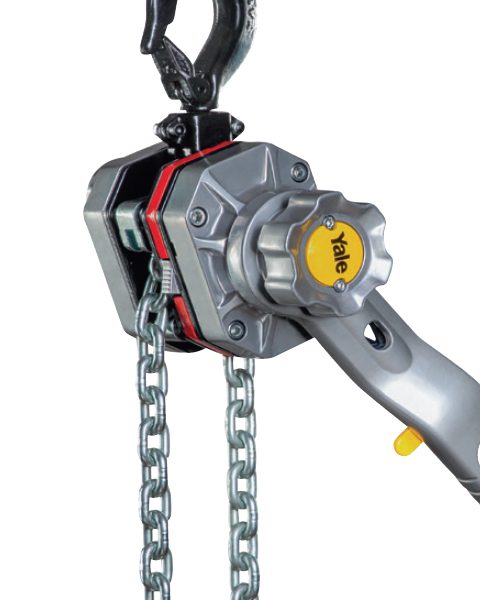

Redefining hoisting in overhead line construction, the Yale 360 Utility Lever Block features an automatically acting safety gear and a patented hand lever for enhanced efficiency. Its innovative design allows for safe and effective lifting and pulling at virtually any angle, making it ideal for demanding utility applications.
- Description
Description
Features
- Automatic acting safety gear that safely absorbs the load after only 25 – 50 mm and thus
prevents the creation of larger dynamic forces which could cause further damage - Excellent corrosion protection with external components zinc plated
- Patented crank handle which guarantees the ideal power transmission for every application
- Directional indicator in the lever
- Easy and smooth free chaining
- Forged hooks and cast safety latches provide for a secure load engagement and bolt on hooks with nyloc nuts simplify the inspection process
- Specifications may vary slightly depending on manufacturer
Specifications
| DESCRIPTION | WLL (t) | LOAD CHAIN NO. OF FALLS | LOAD CHAIN SIZE D X P (mm) | LIFT WITH ONE FULL LEVER TURN (mm) | WEIGHT (kg) |
|---|---|---|---|---|---|
| YALE ERGO 360 UT 1.5t | 1.5 | 1 | 7.1 - T | 21.7 | 9.8 |
| YALE 360 UT 3t | 3 | 1 | 10 - V | 20.1 | 18.1 |
| YALE 360 UT 6t | 6 | 2 | 10 - V | 10.1 | 29.8 |
| YALE 360 UT 9t | 9 | 3 | 10 - V | 6.7 | 50.4 |

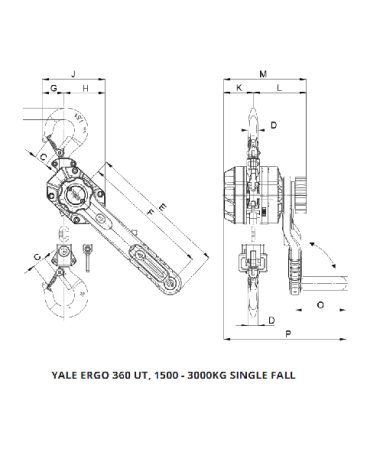

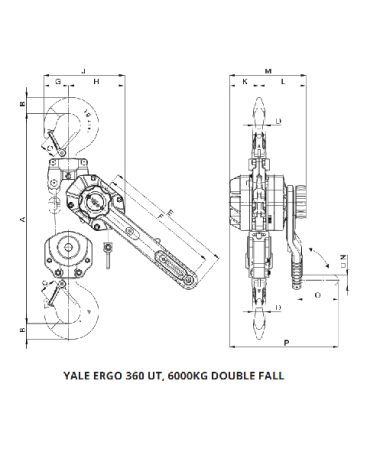

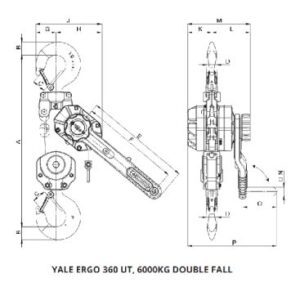

| DESCRIPTION | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | J (mm) | K (mm) | L (mm) | M (mm) | N (mm) | O (mm) | P (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| YALE ERGO 360 UT 1.5t | 375 | 26 | 31 | 21 | 327 | 300 | 51 | 96 | 147 | 69 | 124 | 193 | 30 | 120 | 287 |
| YALE 360 UT 3t | 445 | 37 | 40 | 28 | 377 | 350 | 57 | 123 | 180 | 86 | 136 | 222 | 30 | 120 | 314 |
| YALE 360 UT 6t | 563 | 45 | 47 | 35 | 377 | 350 | 71 | 162 | 233 | 86 | 136 | 222 | 30 | 120 | 314 |
| YALE 360 UT 9t | 695 | 68 | 68 | 50 | 377 | 350 | 116 | 199 | 315 | 86 | 136 | 222 | 30 | 120 | 314 |
