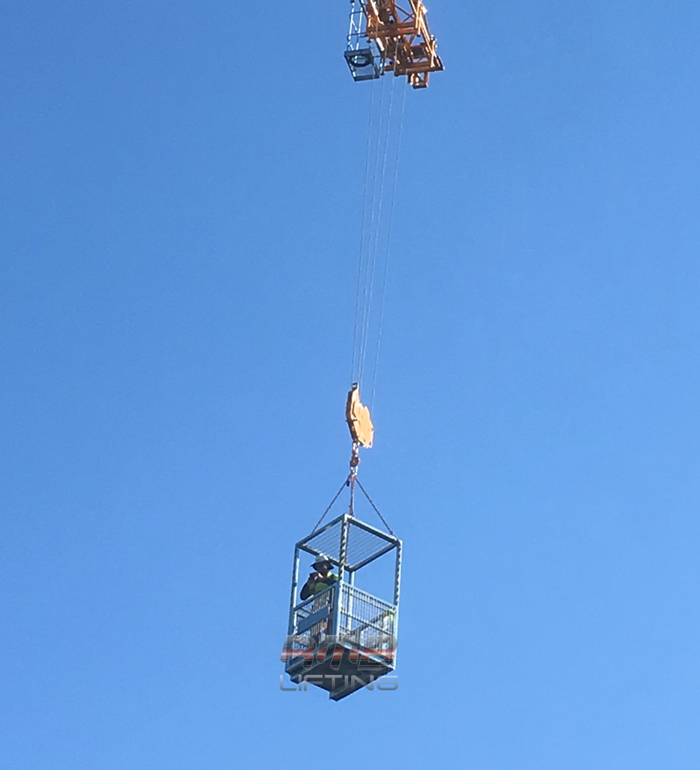

4 Person Crane Cage WP-NCR - Image 1

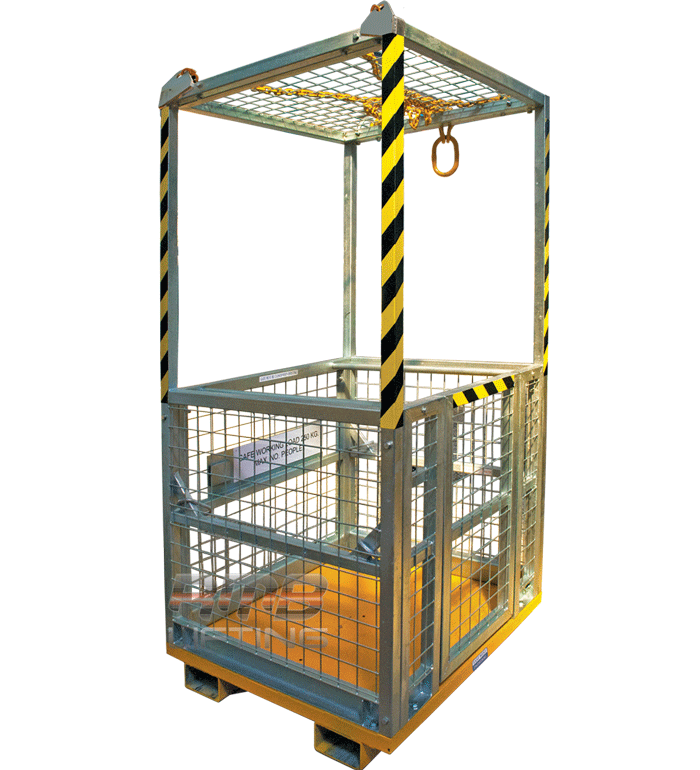

4 Person Crane Cage WP-NCR - Image 2

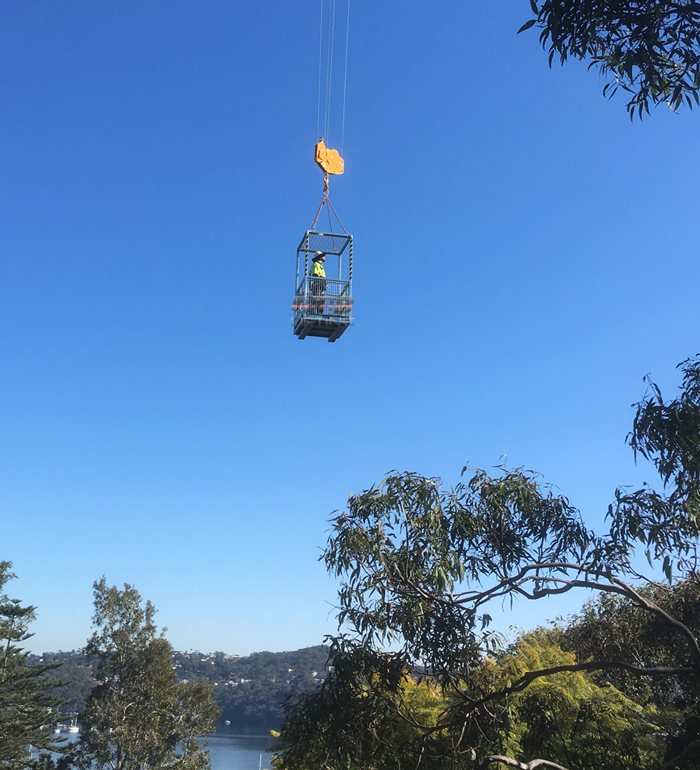

4 Person Crane Cage WP-NCR - Image 3

4 Person Crane Cage WP-NCR

4 Person Crane Cage WP-NC
6 Person Crane Cage WP-NC2R

The WP-NCR Crane Cage has been designed in strict accordance with Australian Standard AS 1418.17 to elevate up to 4 personnel where it is not practicable to erect scaffolds or use a specially designed device.



Category:
Add to quote

Description

Features

  • Suitable for a maximum of 4 people
  • Mesh roof fitted for overhead protection
  • Fitted with mesh sides to prevent objects from falling off the platform
  • Fitted with four (4) safety harness anchor points and hand rails
  • Comes with with lifting chains
  • Built in fork pockets to be used for transport purposes only
  • Work performed in this cage shall be limited to special tasks of short duration
  • Load test certificate, risk control measure documents, work cover registration and comprehensive instructions supplied
  • Zinc finish

Standards

  • AS 1418.17

Specifications

Maximum Capacity  4 people
 Working Load Limit (WLL)   500kg
 Dimensions 1200 x 1100mm
 Unit Weight 310kg
 Fork Pocket Size 185 x 85mm
 Fork Pocket Centres 680mm

It is a mandatory requirement of AS1418.17 that suspension sling sets are supplied as an integral component of a personnel crane cage. If you are using or are offered a cage without dedicated chains or slings, that cage does not comply with Australian Standards and Design Registration requirements and should not be considered for the use of hoisting personnel.
