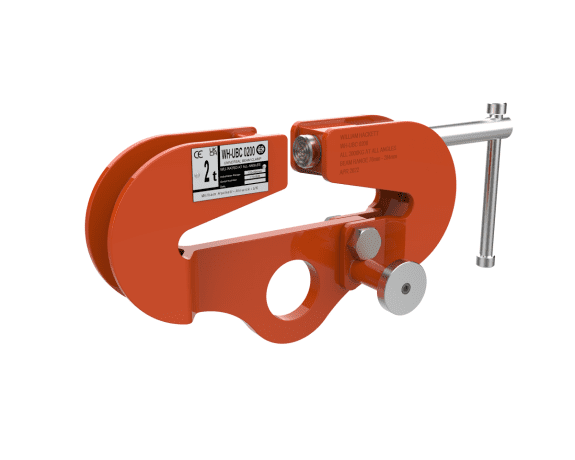

WH UBC Universal Beam Clamp

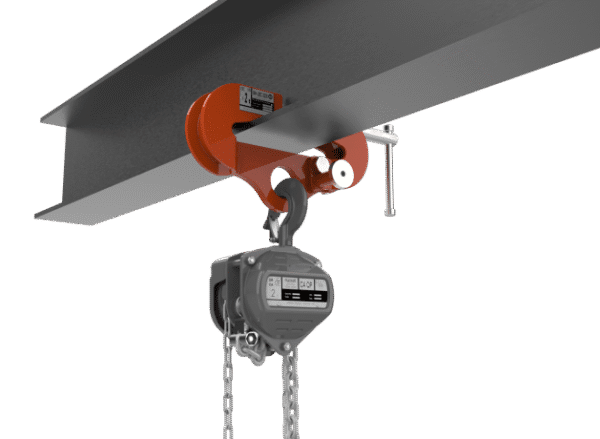

The Wlliam Hackett Universal Beam Clamp is designed, developed and tested in the UK. This specialist clamp is intended for vertical use and side load applications. The Universal Beam Clamp is suitable for pulling and lifting at angles across the beam or as a semi-permanent anchor point. This is the perfect clamp to be suspended on beams offshore due to its versatility. It can be loaded at any angle and eliminates the use of spreader beams in various lifting operations. We can offer training on safe use and inspection.
- Description
Description
Features
- The William Hackett Universal Beam Clamp has been designed for vertical use, and side load applications, where conventional clamps are not.
- The Universal Beam Clamp is suitable for pulling and lifting at angles across the beam or as a semi-permanent anchor point.
- It can be loaded at any angle and eliminates the use of spreader beams in various lifting operations.
- Fitted with an adjustable locking mechanism, ensuring secure clamping to the beam.
- Built-in suspension point for low headroom design.
- Lightweight design allowing for quick clamping and unclamping.
- Our 10.0 tonne extra wide clamp is designed to accommodate a range of beam widths and thicknesses.

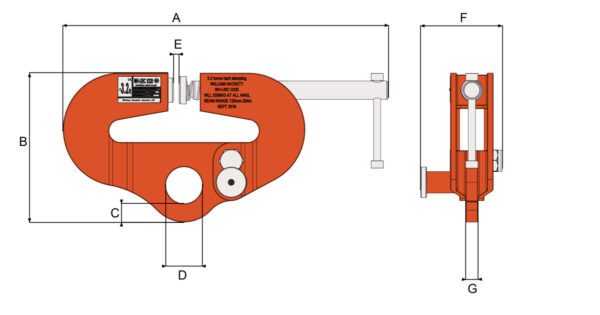

Specifications
| WLL tonnes | B mm | A Min mm | A Max mm | C mm | D mm | E mm | F mm | G mm | Beam Thickness mm | Beam Width mm | Mass kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.0 | 203 | 420.0 | 450.0 | 22.5 | Ø58 | 32.5 | 118 | 16 | 25.4 | 76-204 | 9.5 | |
| 3.2 | 235 | 520.0 | 550.0 | 28.0 | Ø60 | 33.0 | 133 | 20 | 25.4 | 125-204 | 14.7 | |
| 5.0 | 270 | 582.5 | 618.5 | 37.5 | Ø75 | 36.0 | 157 | 24 | 25.4 | 125-305 | 28.3 | |
| 10.0 | 270 | 582.5 | 618.5 | 35.0 | Ø80 | 36.0 | 225 | 44 | 25.4 | 125-305 | 37.8 | |
| 10.0 | 298 | 700.0 | 770.0 | 38.0 | Ø80 | 70.0 | 230 | 44 | 40.0 | 225-405 | 47.0 |
