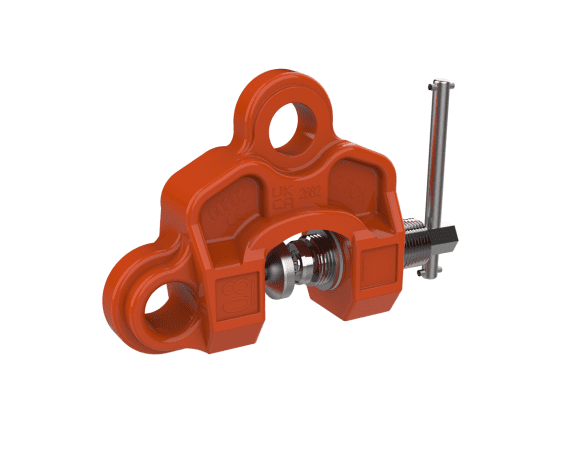

WH Multi Directional Clamp

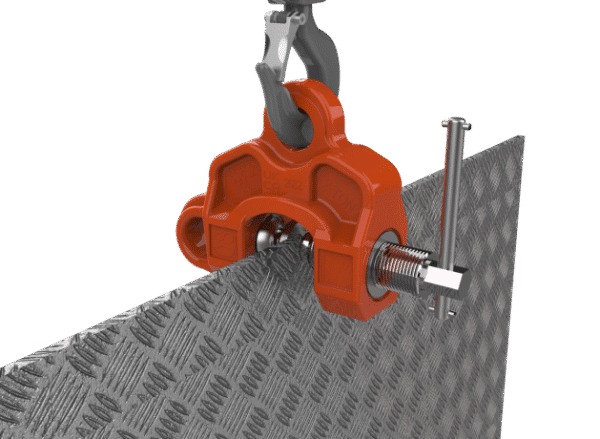

The William Hackett Multi directional clamp is designed, developed and tested in the UK. It is suitable for lifting, transporting, suspending, lateral pulling and turning over steel plates and materials in various shapes throughout civil engineering, construction, iron and steel, shipbuilding, and steel plate working industries. They are also ideal for hanging hoists and for the pulling of various materials as an anchor point. We can offer training on safe use and inspection.
- Description
Description
Features
- WLL Range – 2t – 4t
- Proof load test 2 x WLL
- Two Shackle holes for increased functionality and versatility.
- For horizontal and vertical lifting applications.
- Forged main body.
- Easy installation, no tools required
- Orange powder coated paint finish
Specifications

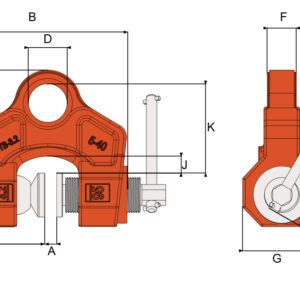

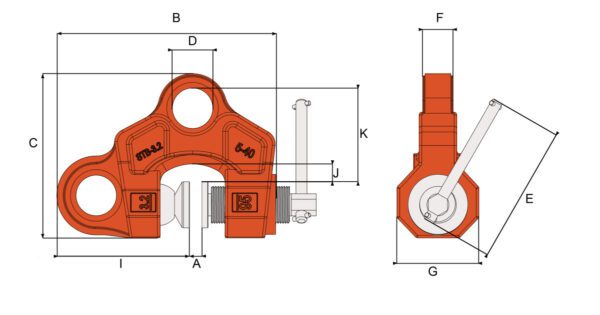

| WLL t | Effective Thickness mm | Gauge Length mm | A mm | B mm | C mm | D mm | E mm | F mm | G mm | H mm | I mm | J mm | K mm | Mass kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.0 | 0-40 | 80 | 0-40 | 203 | 170 | 32 | 150 | 20 | 61 | 235-280 | 90 | 35 | 73 | 4.3 |
| 3.2 | 0-40 | 90 | 0-40 | 226 | 190 | 36 | 150 | 27 | 76 | 260-305 | 100 | 28 | 88 | 8.2 |
| 4.0 | 5-40 | 95 | 5-40 | 250 | 205 | 45 | 150 | 33 | 86 | 290-325 | 120 | 30 | 93 | 10.0 |
