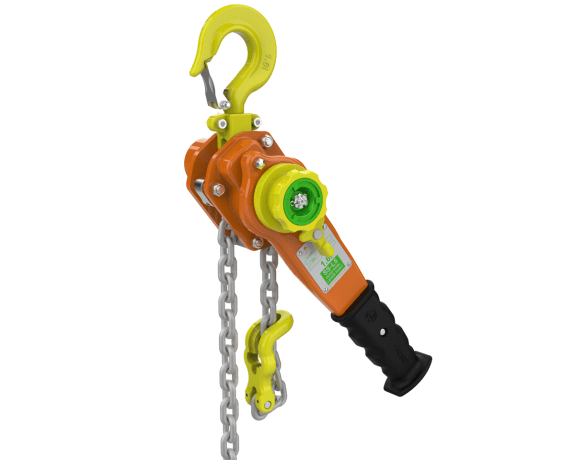

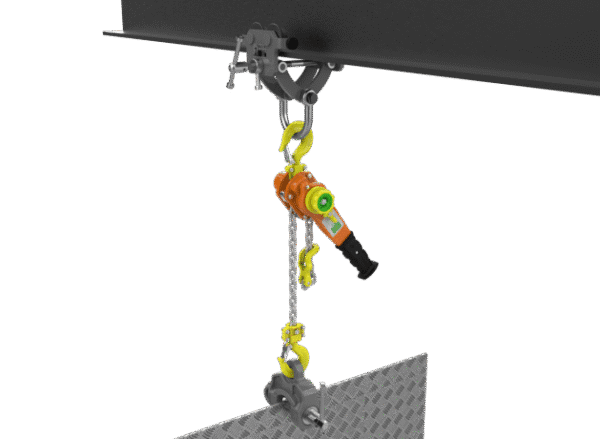

WH SS L5 QP Lever Hoist

Description

Features

• LIGHT LOAD CAPABILITY: the SS L5 QP is tested and certified at 2% of the lever hoist rated capacity.
• QUAD PAWL (QP):
  • enhanced resilience to failure
  • finer tolerance adjustment
  • endurance tested to twice the industry norm
• DABS (DUAL ANTI-LOCK BRAKE SYSTEM): allows the load chain to be adjusted in freewheel mode without locking the brake.
• CONSTRUCTION AND DESIGN: minimises the ingress of contaminates to the internal brake mechanism surfaces.
• STAINLESS STEEL PAWL SPRINGS: specially designed to work with the William Hackett patented quad pawls. The stainless steel springs are captivated in the brake chamber protecting them against damage.
• MARINE PAINT:
  • ISO12944 Category C5 – very high corrosive environments
  • AkzoNobel Interpon Redox Triplex 3-layer paint system
  • Paint system design life: 7-15 years.
• HIGH PERFORMANCE WATERPROOF GREASE: used throughout the SS L5 QP lever hoist enhancing the corrosion protection.
• ADJUSTABLE TRAVELLING END STOP: the uniquely designed travelling end stop of the SS L5 QP lever hoist allows the operator to position the end stop at any point of the slack section of the Grade 8 load chain. When the lever hoist is in a final rigged position the travelling end stop can be positioned adjacent to the body of the SS L5 QP. This has the function of preventing the payout of the chain for whatever reason when the next time the lever hoist is operated.
• STAINLESS STEEL FIXINGS: all Internal springs, circ clips securing the pawls onto the pawl stands, nyloc nuts and socket head cap screws are stainless steel.
• CORROSION PROTECTION: the complete brake mechanism of the SS L5 QP is corrosion protected including the pinion shaft, disc hub, change gear, ratchet gear, pawls, pawl stands and load sheave. In addition the load chain guide, stay bolts and chain stripper are also corrosion protected.
• SAFETY LATCHES: hooks are fitted with heavy duty cast steel latches. The latch and hook tip integrated creating a strong and robust hook closure.
• HOOK OVERLOAD AND TRACEABILITY MARKS: hooks have overload indicator marks either side of the throat (800kg to 10t). Both top and bottom hooks are embossed with a batch code, manufacturer’s mark and the working load limit for full traceability and compliance to international standards.
• HOOK HOUSING: secured with socket head cap screws/hex head bolts and nyloc insert locking nuts to allow full inspection.
• FLEETING/CROSS HAULING: independently tested (test report 2550-7615) for fleeting or cross hauling applications up to 45° from the vertical without deration of the WLL.
• SINTERED/FUSED FRICTION MATERIAL: the brake material is fused directly onto the ratchet gear. This reduces the number of mating faces where there is a potential for ingress of contaminates that could affect the brake performance. Grooves cut into the brake material allow water to be displaced from the friction surface.
• LOAD CHAIN: the SS L5 QP (Quad Pawl) lever hoists are fitted with lGrade T (8) load chain that fully complies with international standard BS EN818-7 Grade T (8).
• OVERLOAD LIMITER: available as an option upon request.
• MANUFACTURED AND PROOF TESTED IN THE UK.

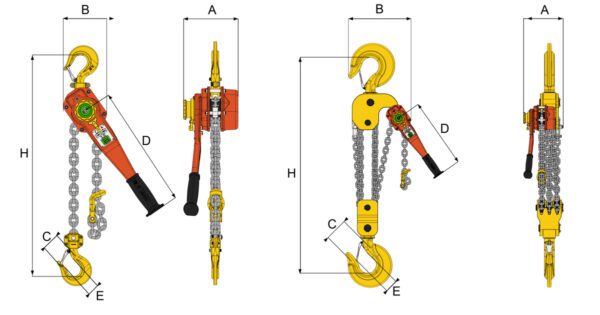

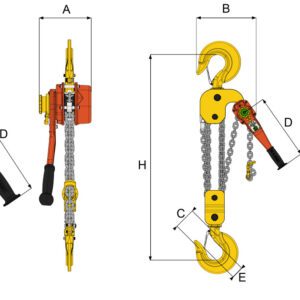

Specifications
