Quick Links offer a temporary connection solution for commercial fittings, commonly used with chains.
- Description
Description
Features
- Manufactured with low carbon steel.
- Sizes available from 4mm to 16mm.
- Oval shaped with a hex screw lock gateway.
- Available in zinc plated finish only.
- Not for lifting applications
Specifications

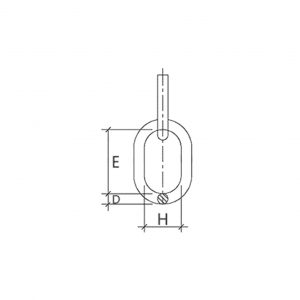

| CHAIN SIZE (mm) | OPENING SIZE (mm) | H (mm) | V (mm) | W (mm) |
|---|---|---|---|---|
| 4 | 5.5 | 39 | 12.5 | 19 |
| 5 | 6.5 | 48 | 15 | 23 |
| 6 | 7.5 | 57 | 19 | 26 |
| 8 | 10 | 76 | 23 | 34 |
| 10 | 12 | 89 | 29 | 40 |
| 12 | 15 | 107 | 32 | 49 |
| 16 | 19 | 140 | 43 | 61 |
