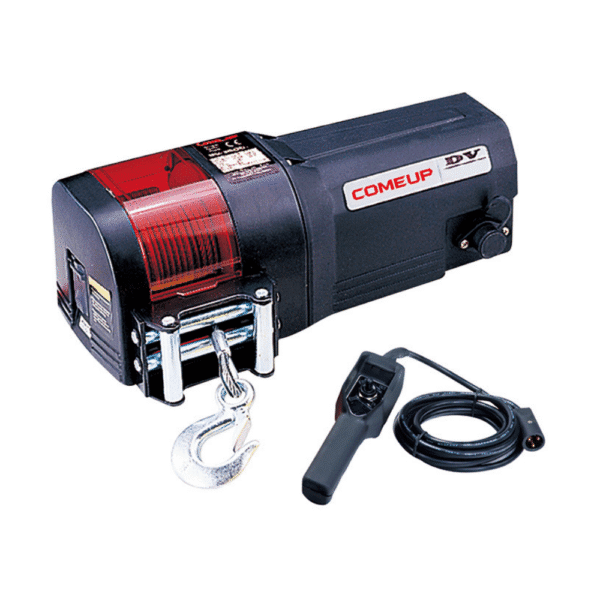

COMEUP UTILITY WINCH 1.5t 12V DV3500i
- Description
Description
The Utility Duty Winch range (DV2500i – DV4500i) are designed to be used as a trailer winch; providing a line pull of up to 2,041kg. They are dexterous, easy to install and the high torque permanent magnet motor delivers high line pull at lower amp draw. Automatic load-holding mechanical failsafe brake ensures strength and reliability.
Utility Duty Winch Range DV2500i – DV4500i
Features
- 12 & 24 Volt reversible motor
- Power in and power out
- Tough weather resistant housing with integrated solenoid pack
- Built-in mechanical safety braking device
- Sliding pin and ring gear clutch for rapid wire rope payout
- Remote control with 3m cable
- Compact and lightweight
- Wireless remote control available separately
Specifications
| MODEL | DV2500i | DV3500i | DV4500i |
|---|---|---|---|
| Stock Code 12 Volt | PDV250 | PDV350 | PDV450 |
| Stock Code 24 Volt | PDV255 | PDV355 | PDV455 |
| Line Pull (kg) | 1,134 | 1,588 | 2,041 |
| Line Speed without Load (m/min) | 5 | 6.5 | 6.5 |
| Wire Rope (¯ mmxm) | 4.8 x 15.2 | 5.5 x 15.2 | 6.3 x 15.2 |
| Wire Rope Type | Galvanised aircraft A7 x 19 | ||
| Drum Size (mmxmm) | 54 x 83 | 54 x 83 | 54 x 83 |
| Net Weight (kg) | 13.5 | 13.9 | 14.2 |
| "Wireless Remote Control (not included - POA) (Stock code/ remote)" | RRCDC3 3Pin RF-24A | RRCDC3 3Pin RF-24A | RRCDC3 3Pin RF-24A |
Dimensions
COMEUP DV RECOVERY 4WD WINCHES – DV2500i – DV4500i (in mm)
| MODEL | DV2500i | DV3500i | DV4500i |
|---|---|---|---|
| A | 153 | 153 | 153 |
| B | 197 | 197 | 197 |
| C | 32 | 32 | 32 |
| D | 93 | 93 | 93 |
| E | 2 - 10 | 2 - 10 | 2 - 10 |
| F | 86 | 86 | 86 |
| G | 190 | 190 | 190 |
| H | 423 | 423 | 423 |
| I | 180 | 180 | 180 |
