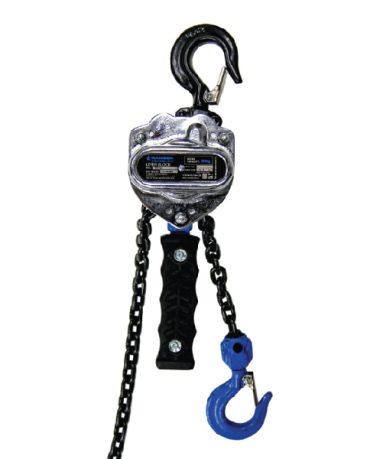

The smallest and lightest lever block available, weighing just 1.5?kg. This compact and versatile lifting and tensioning device is widely used across rigging, construction, and mining applications. Like all lever blocks, it can be operated in any direction—as long as the pull is in a straight line—making it ideal for use in confined or hard-to-reach spaces.
- Description
Description
Features
- Aluminium Alloy Steel Cover
- Grade 100 Load Chain
- Cast safety latch
- Heat treated Alloy Steel Side Plates, Alloy Steel Gears & main parts
- Double Pawl Brake System
- Advanced 5 Gears Mechanical System on Mini Lever Hoist
- 4 Links Load Sprocket
- Li & MoS2 Grease with excellent performance in high or low temperature
Specifications
| CAPACITY | 250kg | 500kg | |
|---|---|---|---|
| Code | 308025 | 308050 | |
| Lifting Height | 1.5m | 1.5m | |
| Tested Load | 3.06kN | 6.12kN | |
| Min Height (Hmin) | 215mm | 255mm | |
| Max motive power | 125 N | 180 N | |
| Number of chains | 1 | 1 | |
| Lifting chain dimensions | 4 x 12 mm | 5 x 15 mm | |

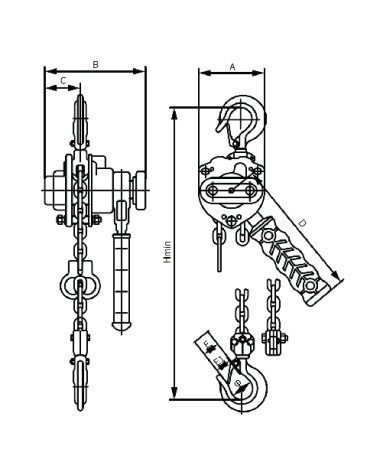

| Dimensions (mm) | A | 75 | 90 |
| B | 116 | 135 | |
| C | 41 | 51.5 | |
| D | 157 | 180 | |
| E | 18 | 24 | |
| E1 | 15.5 | 21 | |
| Ø | 25 | 32 | |
| Weight | 2.7 kg | 4.4 kg | |
| Weight of additional linear metres | 0.35kg | 0.55kg | |
