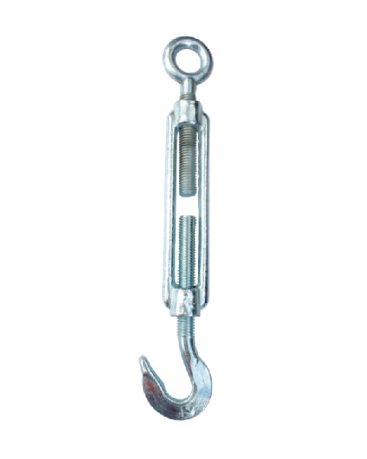

Cast Hook/Eye Turnbuckles are ideal for wire rope assemblies in light-duty applications. Commonly used for simple adjustment and tensioning tasks.
- Description
Description
Features
- Manufactured from malleable cast steel in zinc plated finish.
- Hook and eye end fittings for intended applications.
- Sizes available from 5mm to 24mm.
Specifications

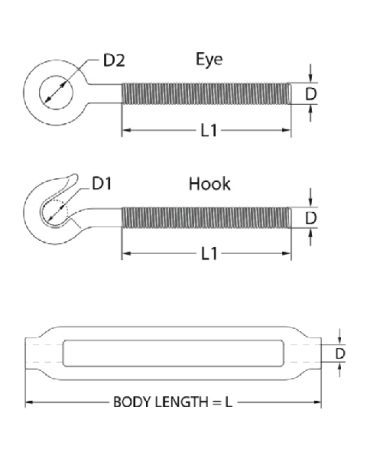

| SIZE (mm) | WEIGHT (kg/pc) | D (mm) | D1 (mm) | D2 (mm) | L (mm) | L1 (mm) |
|---|---|---|---|---|---|---|
| 5 | 0.034 | 5 | 7 | 8 | 70 | 32 |
| 6 | 0.052 | 6 | 8 | 9 | 80 | 35 |
| 8 | 0.098 | 8 | 10 | 11 | 105 | 50 |
| 10 | 0.226 | 10 | 16 | 16 | 130 | 62 |
| 12 | 0.338 | 12 | 18 | 18 | 140 | 65 |
| 16 | 0.898 | 16 | 24 | 24 | 178 | 88 |
| 20 | 1.595 | 20 | 28 | 28 | 215 | 110 |
| 22 | 2.18 | 22 | 32 | 32 | 240 | 120 |
| 24 | 2.8 | 24 | 36 | 36 | 255 | 135 |
