A rugged snatch block built for demanding use in mining, construction, offshore, and rigging operations, offering strength and durability in tough lifting conditions.
HEAVY DUTY SNATCH BLOCK SWIVEL SHACKLE
- Description
Description
Features
- Made from hi-tensile steel body and cast steel sheave
- Grease nipples fitted with roller and brass bush bearings
- Blocks come with swivel Bow Shackle
- Capacities available from 2 tonne to 50 tonne
- Drop forged, heat treated swivel shackle
- MBS is 5 times of WLL
- Conforms to AS2089. Test Certificate supplied
Specifications

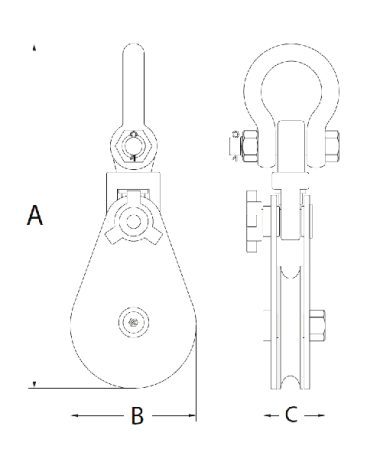

| WLL | SHEAVER DIAM (mm) | WIRE ROPE (mm) | UNIT WEIGHT (kg) | A (mm) | B (mm) | C (mm) |
|---|---|---|---|---|---|---|
| 2 | 75 | 8-9 | 4 | 286 | 82 | 70 |
| 4 | 152 | 10-13 | 13.8 | 400 | 160 | 70 |
| 6 | 152 | 13-16 | 15 | 480 | 180 | 80 |
| 8 | 203 | 16-18 | 16 | 530 | 210 | 93 |
| 10 | 254 | 18-20 | 37.5 | 680 | 260 | 115 |
| 12 | 305 | 20-22 | 56 | 767 | 310 | 133 |
| 15 | 305 | 24-26 | 65 | 884 | 310 | 133 |
| 22 | 355 | 28-32 | 90 | 952 | 365 | 140 |
| 30 | 510 | 32-36 | 210 | 1100 | 510 | 200 |
| 50 | 610 | 44-50 | 418 | 1140 | 630 | 210 |
