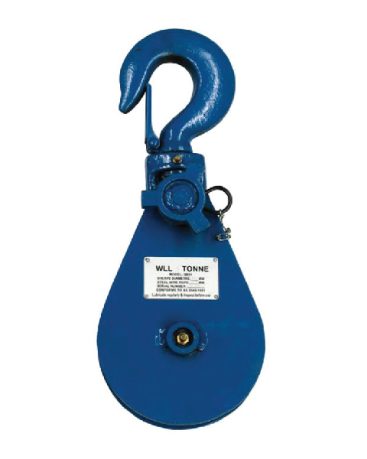

Built for strength and reliability, the heavy-duty hook-type snatch block is suited for a wide range of lifting and rigging applications in industrial environments.
- Description
Description
Features
- Made from hi-tensile steel body and cast steel Sheave.
- Conforms to AS2089.
- Steel Wire Rope References: 6x25Fi+IWRC or 6x36S+IWRC 1770MPa Wire Rope is recommended. Diameter of the rope can be reduced by using higher tensile rope. Check wire rope minimum break strength (MBS) and load rating of equipment before operation.
Specifications

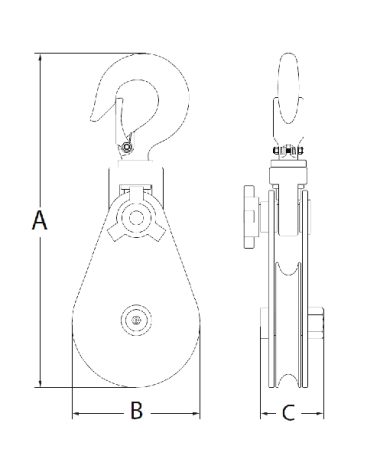

| WLL (tonnes) | SHEAVER DIAM (mm) | WIRE ROPE (mm) | UNIT WEIGHT (kg) | A (mm) | B (mm) | C (mm) |
|---|---|---|---|---|---|---|
| 4 | 152 | 10-13 | 14 | 430 | 160 | 70 |
| 8 | 203 | 16-18 | 16.5 | 550 | 210 | 93 |
