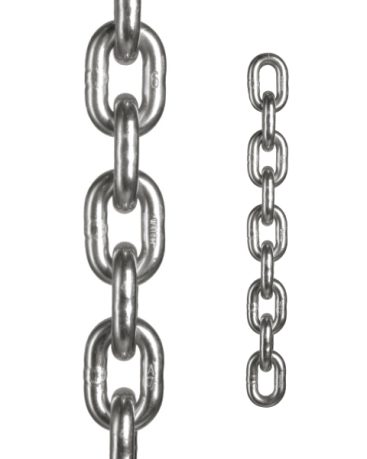

GRADE 60 CHAIN
Grade 60 stainless steel lifting chains and accessories are designed for use in corrosive environments and elevated temperatures. They offer superior resistance to rust and heat compared to standard lifting components, making them ideal for demanding industrial applications.
- Description
Description
Specifications
| SIZE (mm) | CHAIN WLL (tonnes) | d (mm) | t (mm) | b1 min (mm) | b2 max (mm) | WEIGHT (kg) |
|---|---|---|---|---|---|---|
| 4 | 0.35 | 4.0 | 12.0 | 5.0 | 13.7 | 0.350 |
| 5 | 0.60 | 5.0 | 15.0 | 6.5 | 18.5 | 0.540 |
| 6 | 0.90 | 6.0 | 18.0 | 7.8 | 22.2 | 0.800 |
| 7 | 1.20 | 7.0 | 21.0 | 9.1 | 25.9 | 1.100 |
| 8 | 1.50 | 8.0 | 24.0 | 10.4 | 29.6 | 1.400 |
| 10 | 2.40 | 10.0 | 30.0 | 13.0 | 37.0 | 2.200 |
| 13 | 3.85 | 13.0 | 39.0 | 16.9 | 48.1 | 3.800 |
| 16 (G50) | 5.00 | 16.0 | 48.0 | 20.8 | 59.2 | 5.700 |
| 18 (G50) | 7.00 | 18.0 | 54.0 | 24.3 | 64.8 | 7.300 |
#Duplex AISI 318LN (2205 Duplex)
