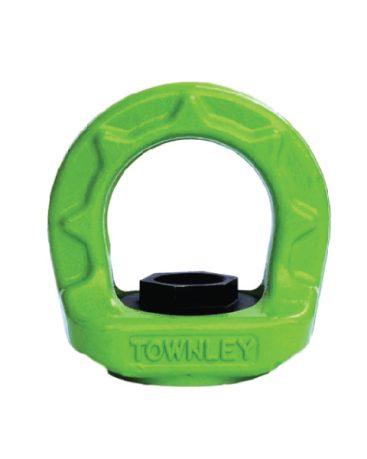

GRADE-10 SWIVEL EYE NUTS
Grade-10 Swivel Eye Nuts provide exceptional lifting capacity in specific applications. Designed as a reliable lifting point, they offer strength, durability, and versatility for demanding lifting operations.
- Description
Description
Features
- Forged from High Tensile Alloy Steel
- 100% electromagnetic crack testing to AS1171
- Hi-visibility Powder Coating to AS450
- Manufactured exclusively from Australian Made Steel
- Long shanks and special thread forms made to order
Specifications

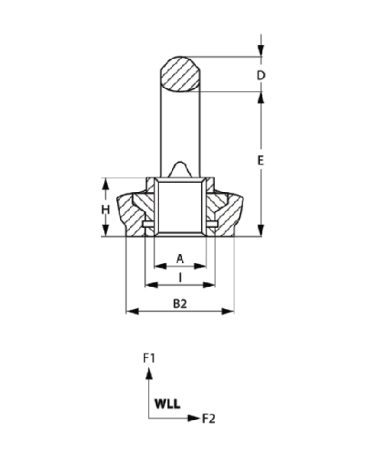

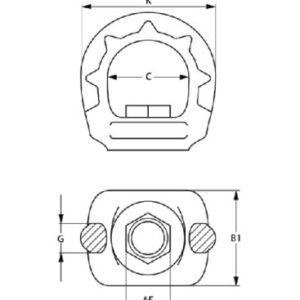

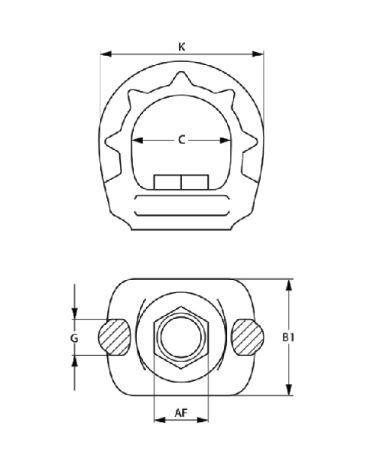

| SIZE | WLL F1 (t) | WLL F2 (t) | WEIGHT (kg) | B1 | B2 | C | D | E | G | H | I | K | A/F |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M08 | 1 | 0.3 | 0.23 | 33 | 30 | 30 | 11 | 43 | 11 | 18.5 | 18 | 55 | 16 |
| M10 | 1 | 0.4 | 0.23 | 33 | 30 | 30 | 11 | 43 | 11 | 18.5 | 18 | 55 | 16 |
| M12 | 2 | 0.75 | 0.23 | 33 | 30 | 30 | 11 | 43 | 11 | 18.5 | 18 | 55 | 16 |
| M16 | 4 | 1.5 | 0.38 | 39 | 35 | 34 | 14 | 49 | 14 | 21 | 22 | 64 | 18 |
| M20 | 6 | 2.3 | 0.6 | 48 | 42 | 39 | 16 | 56 | 16 | 25 | 28 | 69 | 24 |
| M22 | 7 | 2.3 | 0.72 | 48 | 42 | 39 | 16 | 56 | 16 | 28 | 28 | 69 | 24 |
| M24 | 8 | 3.2 | 1.1 | 56 | 50 | 50 | 19 | 71 | 19 | 28 | 33 | 86 | 27 |
