Light-duty Kevlar® Y Strops offer a strong, lightweight solution for towing and securing small to mid-sized skid-mounted equipment. Safer and easier to use than chains or wire rope, they’re ideal for pumps, toolboxes, and mobile power units.

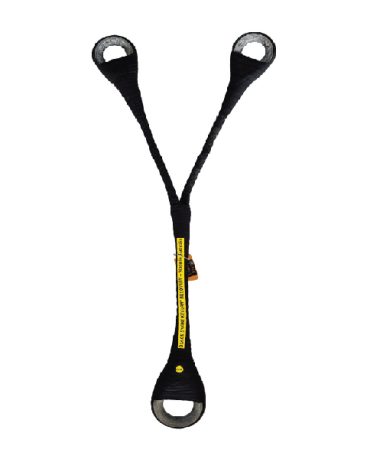

BLACK SNAKE – KEVLAR Y STROPS RECOVERY TOW STROP – LIGHT DUTY
- Description
Description
Features
- Kevlar load fibres offer very low stretch (4%)
- Ultra high strength to weight ratio
- Abrasion/cut resistant rubber protects the Kevlar from the elements and keeps out oil, water, mud and dust
- Specially designed steel eyes suit attachment to shackle pins, hitch pins, and G Type couplings
- Special end fittings or steel thimbles can also be fitted according to customer requirements
- Break Strength is clearly marked on each Black Snake Kevlar Recovery Strop
- Individual serial numbers provide traceability
Specifications
| LENGTH (m) | BREAK STRENGTH¹ | ||
|---|---|---|---|
| 10 tonne | 20 tonne | ||
| 1 | Leg = 0.5m Body = 0.5m Spread (max) =0.4m | Weight 6kg | Weight 7kg |
| 2 | Leg = 1m Body = 1m Spread (max) = 0.8m | 8kg | 12kg |
| 3 | Leg = 1.5m Body = 1.5m Spread (max) = 1.2m | 9kg | 14kg |
| 4 | Leg = 2m Body = 2m Spread (max) = 1.6m | 10kg | 15kg |
| 6 | Leg = 3m Body = 3m Spread (max) = 2.5m | 11kg | 23kg |
| 10 | Leg = 4m Body = 6m Spread (max) = 3.4m | 14kg | 33kg |
| Maximum GVW ² Severely Bogged Vehicle³ | 6 tonne | 13 tonne | |
| Leg Thimble AS 1138 | 22mm | 28mm | |
| Head Thimble Size AS 1138 | 28mm | 36mm | |
| Recommended Coupling Leg | S grade shackle pin: 4.7t-8.5t Super shackle pin: 7t-12.5t Coupling link: 13mm, 16mm | S grade shackle pin: 6.5t-12t Super shackle pin: 9.5t-18t Coupling link: 18mm, 20mm | |
| Recommended Coupling Head | S grade shackle pin: 6.5t-12t Super shackle pin: 9.5t-18t Coupling link: 18/20mm | S grade shackle pin: 12t-25t Super shackle pin: 18t-40t Coupling link: 22mm | |
¹Break strength is the applied load at which the Y Strop fails
²Maximum GVW is the maximum recommended gross vehicle weight of a severely bogged vehicle for a specified Y Strop
³Severely bogged vehicle is judged as resting on its axles or chassis. Resistance force is 75% of vehicle weight. Applicable for skid mounted equipment.
Strop weights are approximate and are subject to change without notice.
