The compact, high-strength design makes this Kevlar® Short Recovery Strop ideal for confined or underground lifting and towing. With steel eyes and a parallel-lay fibre core, it’s widely used in longwall mining and other heavy industry operations.

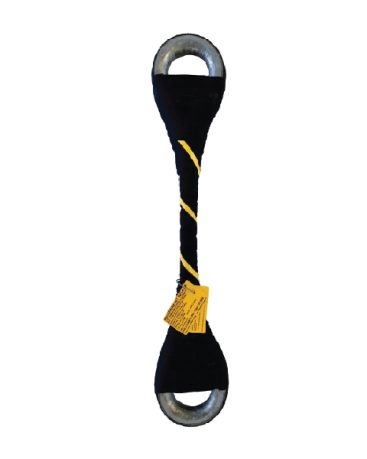

BLACK SNAKE – KEVLAR SHORT RECOVERY STROP
- Description
Description
Features
The lightweight and rugged construction suit the harsh, dirty conditions underground and the low elongation of the KEVLAR and damping qualities of the rubber cover ensure low recoil in the event of over-loading the strop.
Specifications
| LENGTH | BREAK STRENGTH¹ | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| (m) | 10t | 20t | 30t | 50t | 70t | 100t | 150t | 200t | 300t | |
| 0.5 | 2kg | 4kg | 4kg | 4kg | 7kg | N/A | N/A | N/A | N/A | |
| 1 | 3kg | 3.5kg | 3.5kg | 4kg | 7kg | 15kg | request | N/A | N/A | |
| 1.5 | 3kg | 5kg | 5kg | 6kg | 8kg | 17kg | 17kg | request | request | |
| 2 | 4kg | 6kg | 6kg | 7kg | 10kg | 19kg | 19kg | 23kg | 32kg | |
| 3 | 4kg | 8kg | 8kg | 9kg | 12kg | 23kg | 23kg | 27kg | 37kg | |
| Maximum GVW ² Severely Bogged Vehicle³ | 6 tonne | 3 tonne | 20 tonne | 33 tonne | 46 tonne | 67 tonne | 100 tonne | 130 tonne | 200 tonne | |
| EYE type AS 1138 Thimble size or Round Eye | Thimble 22mm | Thimble 28mm | 30t Round Eye Thimble 32mm on request | 50t Round Eye Thimble 36mm on request | 70t Round eye | 100t Round eye | 150t Round eye | 200t Round eye | 300t Round eye |
|
| Recommended Coupling Leg | S grade shackle pin: Super shackle pin: | 4.7t-8.5t 9.5t | 6.5t - 12t 12.5t - 15t | 8.5t - 17t 12.5t - 18t | 12t - 25t 18t - 30t | 17t - 35t 21t - 40t | 25t - 55t 40t - 85t | 35t - 55t 40t - 85t | 42t - 55t 55t - 85t | 55t - 85t 85t - 120t |
| Coupling link: | 13mm 16mm | 18mm/ 20mm | 18mm/ 20mm | 22mm | 26mm | 32mm | N/A | N/A | N/A | |
¹Break strength is the applied load at which the recovery strop fails
²Maximum GVW is the maximum recommended gross vehicle weight of a severely bogged vehicle for a given tow strop
³Severely bogged vehicle is judged as resting on its axles or chassis. The vehicle is being dragged with no rolling of the wheels. Resistance force is 75% of vehicle weight. Weights of strops are approximate and are subject to change without notice.
*All attachments, shackles, hooks must have a greater minimum break strength than the recovery strop
Break Strength denotes the applied load at which the Recovery Strop fails. (i.e.: 50 tonne (f) =490.5kN applied force)
Nominal length refers to the measured length of the strop taken from inside each eyelet.
