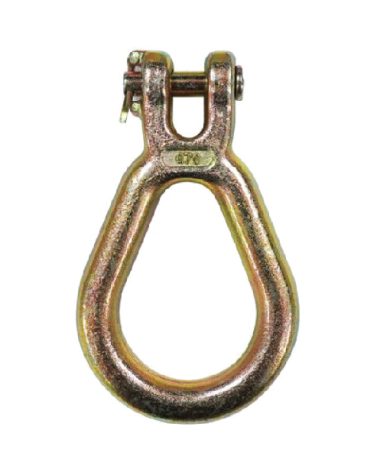

Clevis Lug Links, when paired with Grade 70 Chain, are used to restrain heavy loads and feature a loop design for use as a tow or anchor point—ideal for drag chain applications.
- Description
Description
Features
- Sizes available from 8 to 13mm
- Manufactured from dropped forged steel quenched and tempered and gold zinc plated
- Marked with Chain size, lashing capacity, grade, batch numbered and branded for traceability
- Comply with AS 4344, Batch Test Certificate available upon request
Specifications
| SIZE (mm) | LOAD CAPACITY (kg) | WEIGHT (kg) | B (mm) | C (mm) | D (mm) | T (mm) | T1 (mm) | W (mm) |
|---|---|---|---|---|---|---|---|---|
| 8 | 3800 | 0.15 | 53 | 108 | 9 | 11 | 15 | 86 |
| 10 | 6000 | 0.30 | 55 | 110 | 11 | 12 | 15 | 86 |
| 13 | 9000 | 0.55 | 65 | 128 | 15 | 18 | 15 | 100 |
