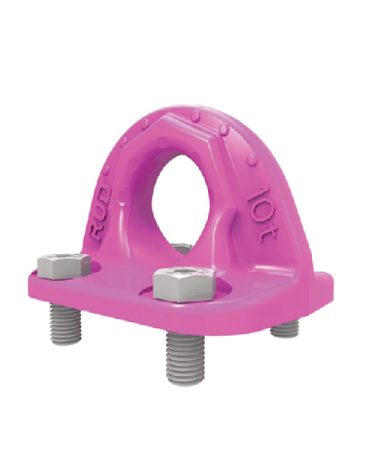

B-ABA LIFTING POINT
The B-ABA is a sturdy, resilient lifting point that remains stable without rattling or shaking, even under strong vibrations or shock loads. It allows simple hinging or attachment to lifting means and is tested and certified to DGUV Testing specifications GS-OA-15-04:2015-12. Each unit is clearly marked with the minimum WLL for all loading directions.
- Description
Description
Features
- 4:1 safety factor
- Pink powder coated surface
- Patented wear markings for easy determination for withdraw of service
- Tempered base body, therefore wear-resistant
Specifications

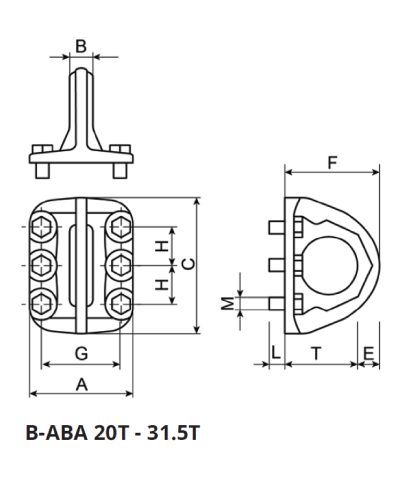

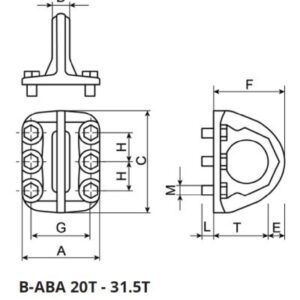

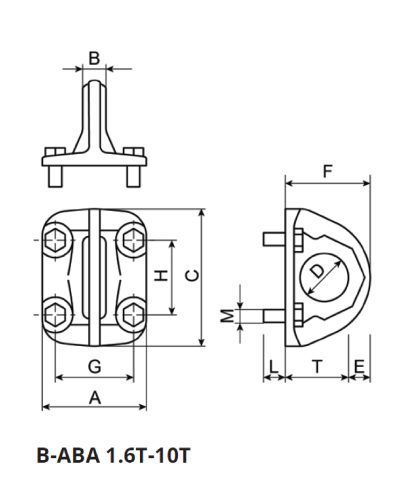

| WLL (t) | T | A | B | C | D | E | F | G | H | L | M | WEIGHT (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.6 | 47 | 75 | 16 | 100 | 35 | 16 | 62.5 | 55 | 55 | 13 | M10 | 0.88 |
| 3.2 | 65 | 92 | 23 | 137 | 50 | 21 | 86 | 70 | 75 | 16 | M12 | 2.01 |
| 5 | 80 | 113 | 27 | 172 | 60 | 28 | 108 | 84 | 95 | 24 | M16 | 4.07 |
| 10 | 105 | 146 | 38 | 228 | 80 | 36 | 141 | 110 | 125 | 25 | M20 | 9.31 |
| 20 | 148 | 200 | 52 | 272 | 115 | 40 | 188 | 150 | 75 | 30 | M24 | 18.77 |
| 31.5 | 170 | 230 | 64 | 320 | 130 | 50 | 220 | 175 | 87.5 | 40 | M30 | 29.50 |
