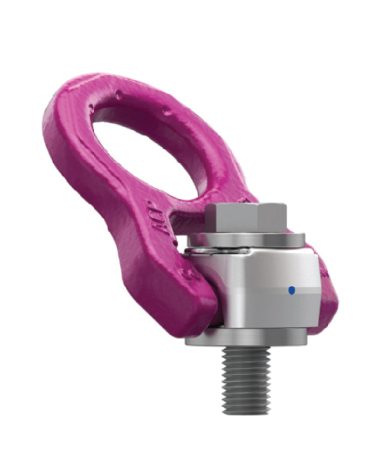

ACP-TURNADO – METRIC THREAD
The RUD ACP-TURNADO features a unique spring mechanism that enhances safety by automatically rotating into the direction of force transmission, actively preventing hazardous ring stoppage. This design eliminates the risk of sudden ring release in the force direction, which could otherwise cause the load to drop abruptly, posing a danger to both load handling equipment and crane systems.
- Description
Description
Features
- Smart design with automatic optimisation
- Higher working load limits (WLL) than hoist rings of comparable sizes
- Maximum transmission of force in all possible directions
- No kinking
- Highest level of safety
- RFID technology as standard
- RUD 4:1 safety factor
Specifications
| WLL (t) | T | B | C | D | E | F | G | H | I | K | L | M | N | WEIGHT (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.35 | 83 | 11 | 10.5 | 38 | 30 | 19 | 38 | 54.5 | 19 | 58 | 47 | M12 | 8 | 0.37 |
| 2.5 | 107 | 14 | 14 | 50 | 40 | 22 | 36 | 68 | 24 | 76 | 58 | M16 | 10 | 0.82 |
| 4 | 118 | 17 | 17 | 50 | 45 | 26.5 | 43.5 | 82.5 | 30 | 89 | 70 | M20 | 12 | 1.34 |
| 6.3 | 154 | 23 | 23 | 66 | 60 | 34 | 55 | 104 | 36 | 121 | 89 | M24 | 14 | 3.03 |
| 8 | 183 | 29 | 27 | 75 | 75 | 41.55 | 68.5 | 129 | 46 | 148 | 110 | M30 | 17 | 5.66 |
| 12.5 | 189 | 32 | 32 | 82 | 70 | 45 | 60 | 128 | 55 | 168 | 105 | M36 | 22 | 7.10 |
| 16T | 189 | 32 | 32 | 82 | 70 | 53 | 60 | 136 | 65 | 168 | 113 | M42 | 24 | 7.5 |
