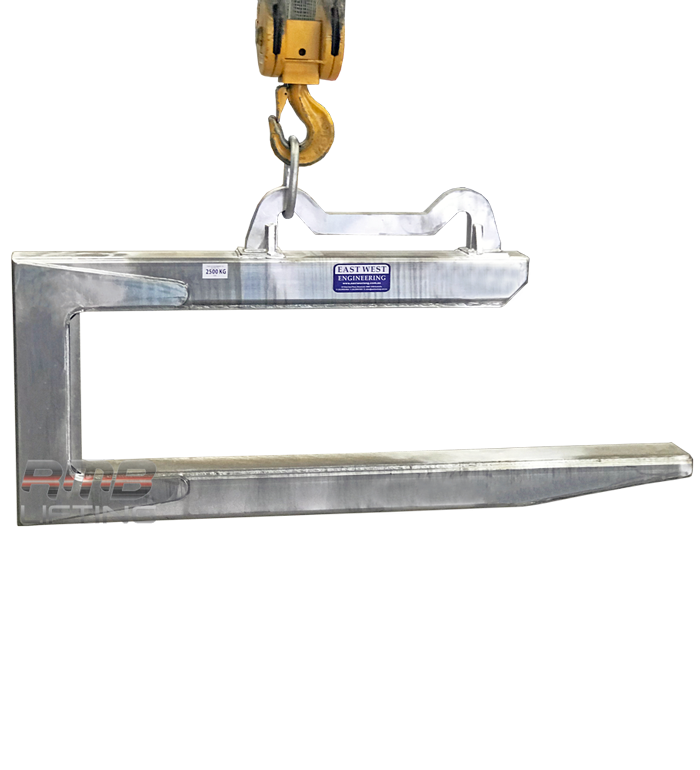

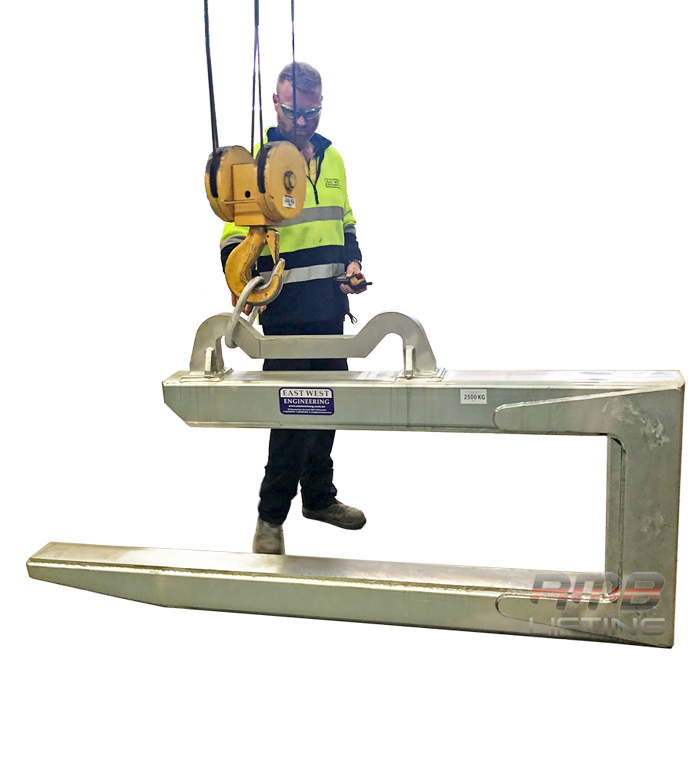

Concrete Pipe Lifter CQM150
The CQM150 Concrete Pipe Lifter is designed to safely handle concrete pipe sections or similar by overhead crane.
- Description
Description
Features
- For use with concrete pipes
- Lifts, transports and places pipe sections with a length of 2450mm
- Load is balanced by moving the lifting ring between the loaded or unloaded positions
Specifications
| Working Load Limit (WLL) | 1500kg |
| Load Centre | 1225mm |
| Overall Dimensions | 2170 x 1182 x 170mm |
| Inside Clearance | 500mm |
| Clear Hook Arm Length | 2000mm |
| Unit Weight | 250kg |
