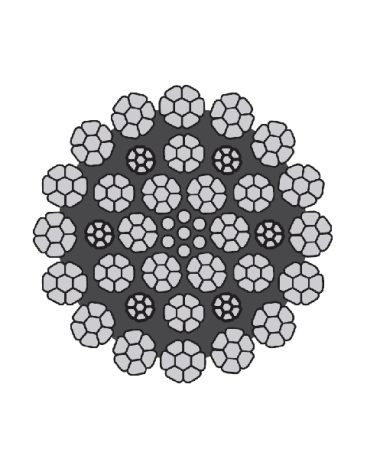

35 x 7 rotation resistant wire rope offers maximum resistance to rotation, making it ideal for single-part and multi-part hoist reeving systems. Designed for demanding lifting applications where spin resistance is critical.
- Description
Description
Features
- 35 x 7 Compact has the highest strength of all low rotation hoist ropes
- A sample of rope from each production batch is tested to destruction in order to confirm compliance with catalogue breaking force values
- Maximum resistance to rotation
- Suitable for use on single part and multi-part hoist reeving systems
- High fatigue life resulting from the unique compaction process
- Increased resistance to crushing. Recommended for multi-layer spooling operations
- Increased abrasion resistance resulting from the unique compaction process
- Optional plastic impregnation. (P) signifies full plastic impregnation of the Steel Core
- Fully lubricated in manufacturing
Specifications
| WIRE ROPE DIA (mm) | WIRE ROPE DIA (inch) | APPROX MASS (kg/100m) | MIN BREAKING FORCE 1960 N/mm² (kN) |
|---|---|---|---|
| 1/2 | 81.1 | 148 | |
| 13 | 85.0 | 155 | |
| 14 | 98.6 | 180 | |
| 16 | 129 | 233 | |
| 18 | 163 | 300 | |
| 19 | 182 | 331 | |
| 20 | 201 | 372 | |
| 21 | 222 | 402 | |
| 22 | 243 | 444 | |
| 7/8 | 249 | 453 | |
| 24 | 290 | 531 | |
| 1 | 325 | 591 | |
| 26 | 340 | 621 | |
| 28 | 394 | 720 | |
| 1-1/8 | 411 | 748 | |
| 30 | 453 | 827 | |
| 32 | 515 | 944 | |
| 35 | 616 | 1125 | |
| 36 | 652 | 1185 | |
| 38 | 726 | 1326 | |
| 40 | 805 | 1477 | |
| 42 | 887 | 1485 | |
| 44 | 974 | 1618 | |
| 1-3/4 | 994 | 1646 | |
| 46 | 1064 | 1765 | |
| 48 | 1159 | 1935 | |
| 50 | 1258 | 2078 | |
| 2 | 1298 | 2150 | |
| 52 | 1360 | 2256 |
