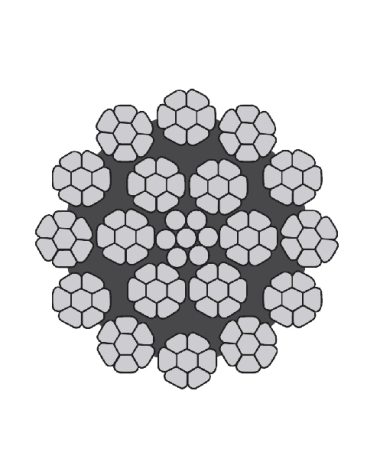

19 x 7 rotation resistant wire rope features a steel core and galvanized finish. Ideal for winch cables, rigging, control lines, guy wires, or any general-purpose application requiring high flexibility and strength.
- Description
Description
Features
- Powerform 18 is a high strength rotation resistant hoist rope
- Sample of rope from each production batch is tested to destruction in order to confirm
- Compliance with catalogue breaking force values
- Good resistance to rotation verified by testing on the in-house torgue turn machine
- Suitable for use on single part and multi-part hoist reeving systems
- High fatigue life resulting from the unique compaction process
- Increased resistance to crushing. Recommended for multi-layer spooling operations
- Increased abrasion resistance resulting from the unique compaction process
- Full lubricated in manufacturing
Specifications
| WIRE ROPE DIA (mm) | WIRE ROPE DIA (inch) | APPROX MASS (kg/100m) | MIN BREAKING FORCE 1960 N/mm² (kN) |
|---|---|---|---|
| 6 | 17.5 | 29.4 | |
| 7 | 23.8 | 38.0 | |
| 8 | 31.0 | 51.8 | |
| 9 | 39.3 | 64.6 | |
| 10 | 48.5 | 80.8 | |
| 11 | 58.7 | 101.0 | |
| 12 | 69.8 | 116.0 | |
| 1/2 | 78.2 | 135.0 | |
| 13 | 82.0 | 141.0 | |
| 14 | 95.1 | 160.0 |
