EYEBOLT DIN STANDARD 580
Eye Bolts DIN580 and Eye Nuts DIN582 are removable lifting points suitable for use with a rated female thread or nut, and can also serve as terminations for chain, wire rope, and other assemblies.
- Description
Description
Features
- Made from C15 carbon steel with zinc plated finish, manufactured with a standard larger eye. Only available in metric thread sizes
- Conforms to DIN580 and DIN 582 marked with working load limit in tonne
- Proof tested to 2 x Working load limit and Minimum breaking force of 6 x Work load limit
Specifications

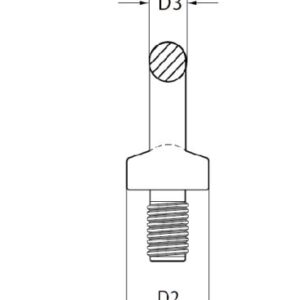

| SIZE (mm) | PITCH (mm) | WLL (t) | WEIGHT (kg) | D (mm) | D1 (mm) | D2 (mm) | D3 (mm) | H (mm) | H1 (mm) | W (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M6 | 1.00 | 0.07 | 0.055 | 6 | 14 | 19 | 6.5 | 27.5 | 12 | 27 |
| M8 | 1.25 | 0.14 | 0.06 | 8 | 20 | 20 | 8 | 36 | 13 | 36 |
| M10 | 1.50 | 0.23 | 0.1 | 10 | 25 | 25 | 10 | 45 | 17 | 45 |
| M12 | 1.75 | 0.34 | 0.19 | 12 | 30 | 30 | 12 | 53 | 20 | 54 |
| M16 | 2.00 | 0.70 | 0.31 | 16 | 35 | 35 | 14 | 62 | 27 | 63 |
| M20 | 2.50 | 1.20 | 0.45 | 20 | 40 | 40 | 16 | 71 | 30 | 72 |
| M22 | 2.50 | 1.50 | 0.68 | 22 | 45 | 45 | 18 | 80.5 | 35 | 81 |
| M24 | 3.00 | 1.80 | 0.72 | 24 | 50 | 50 | 20 | 90 | 36 | 90 |
| M27 | 3.00 | 2.50 | 1.16 | 27 | 50 | 50 | 20 | 97 | 36 | 90 |
| M30 | 3.50 | 3.60 | 1.6 | 30 | 65 | 65 | 24 | 109 | 45 | 108 |
| M36 | 4.00 | 5.10 | 2.8 | 36 | 75 | 75 | 28 | 128 | 54 | 126 |
| M42 | 4.50 | 7.00 | 4.2 | 42 | 85 | 85 | 32 | 147 | 63 | 144 |
| M48 | 5.00 | 8.60 | 6.5 | 48 | 100 | 100 | 38 | 168 | 68 | 168 |
| M56 | 5.50 | 11.5 | 8.9 | 56 | 100 | 110 | 42 | 187 | 78 | 184 |
