WH ATEX L4 Lever Hoist

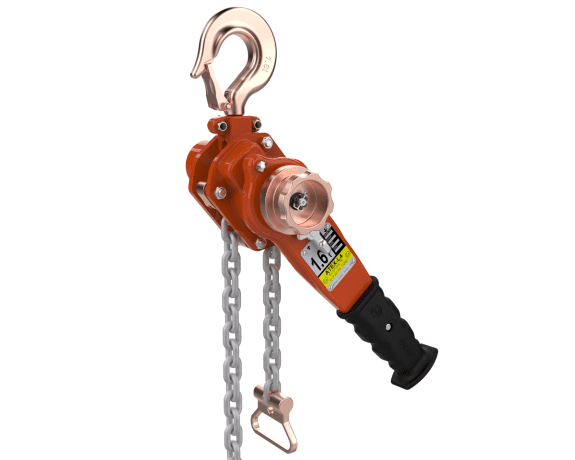

The William Hackett ATEX C4 Lever Hoist is designed, manufactured and proof load tested in the UK. It complies with the requirements of ATEX Directive 2014 / 34 / EU and Machinery Directive 2006 / 42 / EC.
We have analysed all components of the L4 hoist and identified the components that have a potential spark risk. A spark can be generated from fast moving components such as the pawls on the ratchet gear.
The WH ATEX L4 Lever hoist uses surface technology to develop the components making it safe to use in hazardous environments. We provide a full range of spare parts and can offer training on safe use and inspection.
- Description
Description
Features
- LIGHT LOAD CAPABILITY: the WH ATEX L4 is tested and certified at 2% of the lever hoist rated capacity.
- TWIN PAWL: double safety; fitted as standard.
- CORROSION PROTECTED specific internal components corrosion protected.
- COPPER PLATED parts include top and bottom hook bowls, load chain guides, grip rings and chain stripper.
- SAFETY LATCHES: the WH ATEX L4 lever hoist top and bottom hooks are fitted with heavy duty cast steel latches. The latch and hook tips are integrated creating a strong and robust hook closure.
- HOOK OVERLOAD AND TRACEABILITY MARKS: hooks have overload indicator marks either side of the hook throat (800kg to 10t). Both top and bottom hooks are embossed with a batch code, manufacturer’s mark and the working load limit for full traceability and compliance to international standards.
- HOOK HOUSING: secured with socket head cap screws/hex head bolts and nyloc locking nuts to allow full inspection.

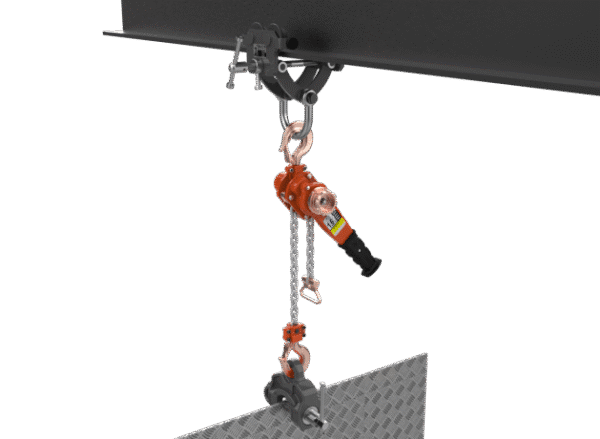

- FLEETING/CROSS HAULING: the WH ATEX L4 lever hoists are tested and certified for fleeting or cross hauling applications up to 45° from the vertical without deration.
- LOAD CHAIN: the hoists are fitted with load chain that fully complies with international standard BS EN818-7 Grade T (8).
- OVERLOAD LIMITER: available as an option upon request.
- MANUFACTURED AND PROOF TESTED in the U.K.

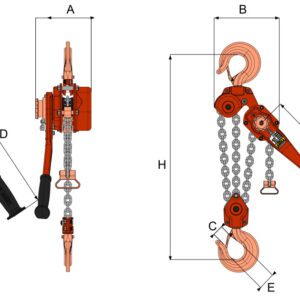

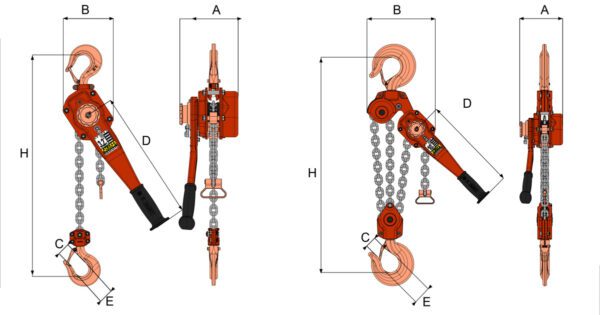

Specifications
| WLL tonnes | No. of Falls | Load Chain mm | Standard Lift m | A mm | B mm | C mm | D mm | E mm | H mm | Mass kg | Extra Weight per m kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.8 | 1 | 5.6 x 17 | 1.5 | 148.0 | 121 | 41.5 | 265 | 28.0 | 280 | 6.20 | 0.70 | |
| 1.6 | 1 | 7.1 x 21 | 1.5 | 165.5 | 141 | 52.0 | 415 | 33.0 | 350 | 9.60 | 1.10 | |
| 3.2 | 1 | 10 x 30 | 1.5 | 194.5 | 178 | 61.9 | 415 | 42.5 | 420 | 15.50 | 2.20 | |
| 6.3 | 2 | 10 x 30 | 1.5 | 194.5 | 228 | 84.3 | 415 | 51.0 | 570 | 27.00 | 4.40 | |
| 10.0 | 3 | 10 x 30 | 1.5 | 194.5 | 310 | 88.0 | 415 | 56.0 | 680 | 38.30 | 6.60 |
