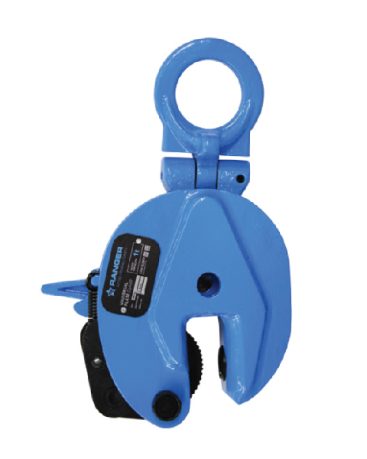

UNIVERSAL PLATE CLAMP
Featuring a hinged lifting eye, the Universal Plate Clamp allows for safe vertical and multi-angle lifting, offering flexibility for varied load orientations.
- Description
Description
Features
- Capacities available from 0.75 tonne to 8 tonne
- Can be used on material hardness up to 37RC
- Individually serial numbered with Test Certificate and instruction manual supplied
- Conforms to AS4991
Specifications

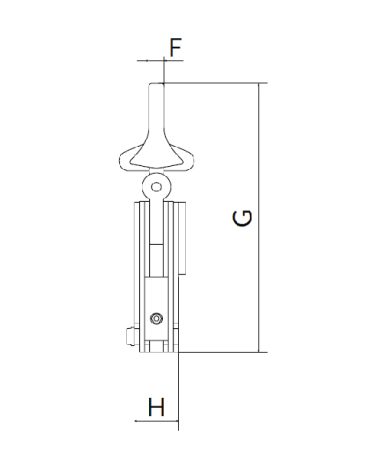

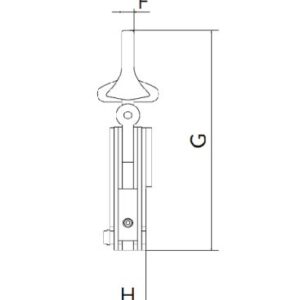

| WLL (kg) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) |
|---|---|---|---|---|---|---|---|---|
| 750 | 30 | 40 | 36 | 0-15 | 105 | 10 | 218 | 45 |
| 1000 | 48 | 65 | 50 | 0-20 | 145 | 13 | 305 | 63 |
| 2000 | 68 | 76 | 62 | 0-25 | 175 | 16 | 368 | 68 |
| 3000 | 74 | 87 | 58 | 0-30 | 218 | 19 | 395 | 90 |
| 5000 | 74 | 98 | 72 | 0-50 | 235 | 21 | 480 | 100 |
| 8000 | 78 | 120 | 88 | 50-100 | 285 | 25 | 490 | 115 |
