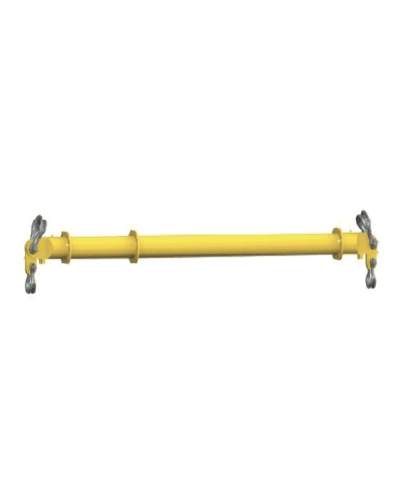

Modular Spreader Beams offer a versatile, cost-effective solution for a wide range of lifting applications. The Modulift range covers capacities from 2 t to 5000 t with spans up to 100 m. Their modular configuration, with interchangeable components, allows the beams to be reused for multiple lifts. Each beam comprises a pair of end units and drop links, with interchangeable struts that can be bolted between the end units to adjust the span to suit the lift. Spreader beams up to 400 t capacity are stocked and available worldwide—contact Ranger for an immediate quote or further details.
- Description
Description
Australia Compliance
AS 4991 – 2004: Lifting Devices.
DNV Standard for Certification
DNV 2.22: Modulift Spreader Beams designs conform to DNV Standard for Certification No.2.22 Lifting Appliances.
Modulift is the first and only Spreader Beam Manufacturer in the world to have the globally recognised DNV Type Approval for all Spreader Beams up to 1000t capacity in accordance with DNV’s standard for Certification No. 2.22 for Lifting Appliances 2011, at no extra cost to the client.
For those customers who require a higher level of quality standard, Modulift also provides further options for project specific 3rd party verification. When a project demands the highest level of certification Modulift are able to offer our customers varying degrees of additional DNV certification depending upon their individual QA requirements, including:
- Proof Load Test Survey Report and Record of Test
- DNV Certificate of Conformity for Manufacture & Test (CG3 in accordance with ILO convention 152)
Talk to LiftQuip about these additional services.
