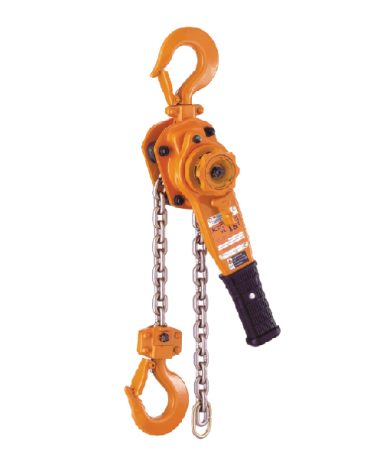

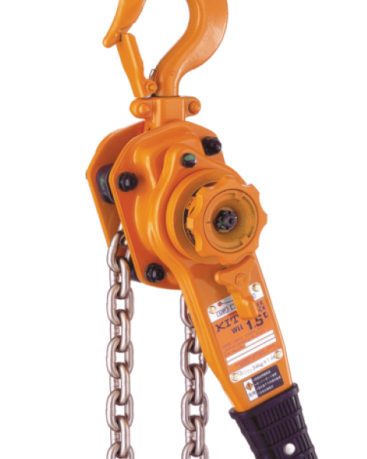

The KITO L5 Series offers one of the widest ranges of capacities on the market, making it easy to find the right fit for your application. Lightweight and compact, yet built for heavy-duty use, the L5 is engineered to perform reliably in the most demanding environments. All models come equipped with KITO’s patented free-wheel safety brake mechanism and a durable nickel-plated load chain for added strength and corrosion resistance.
- Description
Description
Features
- Optional lift heights also available
- Compact and portable the 250kg and 500kg capacity units are an ideal Lever Hoist for lifting, lowering or positioning of loads that can be carried and stored in your toolbox
- 250kg Capacity Unit supplied with polyester carry case for belt attachment
Specifications
| WLL (t) | WEIGHT (kg) | STANDARD LIFT (m) | HAND EFFORT TO LIFT LOAD N (kg) | HANDLE LENGTH (mm) | HEADROOM MIN (mm) |
|---|---|---|---|---|---|
| 0.25 | 1.6 | 1.0 | 200 (20) | 150 | 205 |
| 0.5 | 2.6 | 1.2 | 310 (31) | 180 | 246 |
| 0.8 | 5.7 | 1.5 | 284/ (29) | 245 | 280 |
| 1.0 | 5.9 | 1.5 | 353/ (36) | 245 | 300 |
| 1.6 | 8 | 1.5 | 333/ (34) | 265 | 335 |
| 2.5 | 11.6 | 1.5 | 363/ (37) | 265 | 375 |
| 3.2 | 15 | 1.5 | 363/ (37) | 415 | 395 |
| 6.3 | 27.0 | 1.5 | 372 (38) | 415 | 540 |
| 9.0 | 42.0 | 1.5 | 382 (39) | 415 | 680 |
| 0.8 | 6.5 | 3.0 | 284 (29) | 245 | 280 |
| 1.6 | 8.5 | 3.0 | 333 (34) | 265 | 335 |
| 3.2 | 15.5 | 3.0 | 363 (37) | 415 | 395 |
| 6.3 | 30.0 | 3.0 | 372 (38) | 415 | 540 |
