Eye Hoist Hooks with Safety Latch are suited for general lifting tasks using wire rope slings or winch cables. A durable and secure solution for a wide range of rigging and lifting operations.
- Description
Description
Features
- Manufactured from forged alloy steel quenched and tempered.
- Capacities available from 1 ton to 11 ton.
- Marked with work load limit and alloy.
- Conforms to AS3777 with safety factor of 4:1
- Latch kits are available as spare part.
- Test Certificates available upon request
Specifications

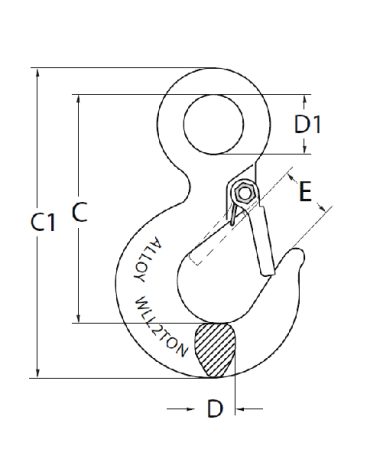

| WLL (tonne) | B.L (tonne) | WEIGHT (kg) | C (mm) | C1 (mm) | D (mm) | D1 (mm) | E (mm) |
|---|---|---|---|---|---|---|---|
| 1 | 5 | 0.28 | 82 | 110 | 16 | 19 | 22 |
| 1.5 | 7.5 | 0.4 | 93.5 | 125 | 17.5 | 23 | 23 |
| 2 | 10 | 0.65 | 103 | 140.5 | 21 | 28 | 24 |
| 3 | 15 | 0.94 | 119 | 162 | 23 | 31 | 27.5 |
| 4.5 | 25 | 1.95 | 146 | 201 | 30 | 39 | 33 |
| 7 | 35 | 3.77 | 186.5 | 256 | 38 | 51 | 40 |
| 11 | 55 | 6.80 | 231.5 | 317 | 46 | 62 | 51 |
