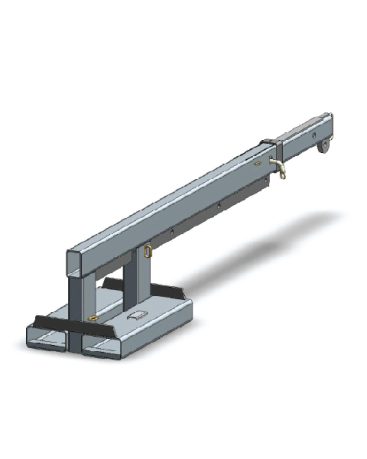

LiftQuip stocks a selection of short and long fixed jibs with various reach options. Designed as a slip-on forklift attachment, each jib is secured with a safety chain for reliable operation. The standard finish is zinc-plated for durability.
- Description
Description
Features
Our Long Fixed Jibs are forklift attachments best suited to general purpose and long reach lifting activities. They are fixed at a horizontal position with a telescopic extension for different lifting positions and Safe Working Loads. The Forklift Jib attachments are held safely by a chain and all models feature a zinc finish.
Specifications
| DESCRIPTION | WLL (kg) | WEIGHT (kg) | EXTENDED REACH (m) | LENGTH WHEN CLOSED (m) | LOAD CENTRE (mm) | POCKET SIZE | POCKET CENTRES (mm) |
|---|---|---|---|---|---|---|---|
| Fixed Jib SHORT - 2.5t | 2500 | 100 | 1.96 | 1.3 | 790 | 185 x 65 | 275 |
| Fixed Jib LONG - 2.5t | 2500 | 135 | 3.5 | 2.1 | 950 | 185 x 65 | 275 |
| Fixed Jib SHORT - 4.75t | 4750 | 130 | 1.96 | 1.3 | 780 | 185 x 75 | 275 |
| Fixed Jib LONG - 4.75t | 4750 | 170 | 3.5 | 2.1 | 935 | 185 x 65 | 275 |
| Extension Jib - 3.5t | 3500 | 115 | 2.365 | 1.5 | 800 | 185 x 65 | 300 |
| Extension Jib - 4.7t | 4700 | 140 | 2.365 | 1.5 | 790 | 185 x 65 | 350 |
| Forklift Extension Slip On - Jib | 2000 | 45 | 1160 | 140 x 65 | 250 |
