Heavy-duty wire rope grips featuring a double saddle and oversized nuts for extra tightening force. Hot dipped galvanised for superior corrosion resistance.

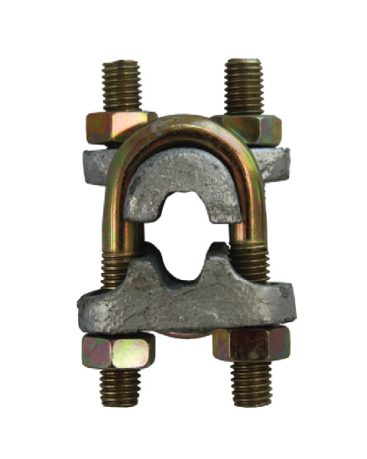

DOUBLE THROAT WIRE ROPE GRIP HOT DIPPED GALVANISED
- Description
Description
Features
- Sizes available are from 8mm to 16mm.
- Zinc plated finish on both U-bolt and saddle.
NOTE: NOT FOR LIFTING PURPOSES
Specifications
| SIZE (mm) | W (mm) | L (mm) | d (mm) | UOM | QTY |
|---|---|---|---|---|---|
| 8-9 | 46 | 40 | 8 | Each | 5 |
| 10-12 | 52 | 40 | 10 | Each | 5 |
| 16 | 58 | 46 | 10 | Each | 2 |
| 20-22 | 76 | 56 | 12 | Each | 2 |
| 26-28 | 78 | 61 | 12 | Each | 2 |
