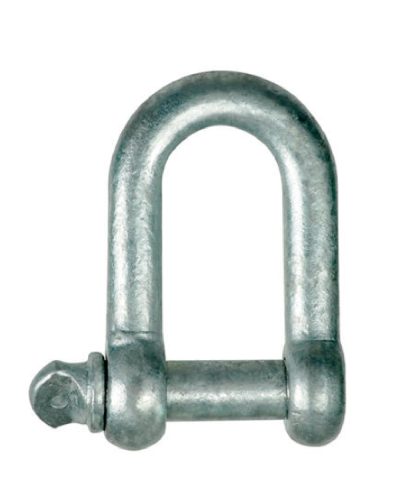

COMMERCIAL GALVANISED DEE SHACKLE
Commercial Galvanised Dee Shackles are suitable for domestic, mining, and a wide range of general industrial applications. These non-rated shackles are ideal for basic connection tasks where certified lifting gear is not required.
- Description
Description
Features
- Shaped in a either a Bow or Dee pattern, they come with Screw Pin made from mild steel material in hot dipped galvanized.
- NOT FOR LIFTING APPLICATIONS.
Specifications

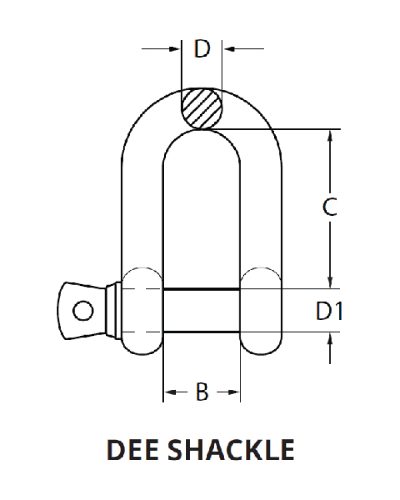

| SIZE (mm) | WEIGHT (kg) | B (mm) | D (mm) | D1 (mm) | C (mm) |
|---|---|---|---|---|---|
| 5 | 0.015 | 10 | 5 | 5 | 19 |
| 6 | 0.025 | 12 | 6 | 6 | 24 |
| 8 | 0.054 | 16 | 8 | 8 | 32 |
| 10 | 0.109 | 20 | 10 | 10 | 40 |
| 12 | 0.205 | 25 | 12 | 12 | 48 |
| 16 | 0.48 | 32 | 16 | 16 | 64 |
| 20 | 0.815 | 38 | 20 | 20 | 76 |
| 22 | 1.285 | 44 | 22 | 22 | 85 |
| 25 | 1.866 | 25 | 25 | 24 | 95 |
