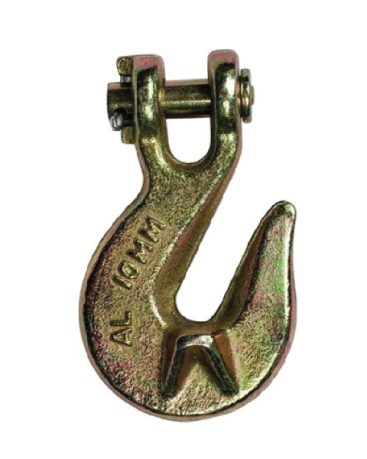

Clevis Winged Grab Hooks offer a secure solution for restraining heavy loads during transport, featuring a built-in cradle that provides full lashing capacity and improved chain engagement.
- Description
Description
Features
- Sizes available from 6mm to 13mm
- Manufactured from dropped forged steel quenched and tempered and gold zinc plated
- Marked with Chain size, lashing capacity, grade, batch numbered and branded for traceability
- Comply with AS 4344, Batch Test Certificate available upon request
Specifications

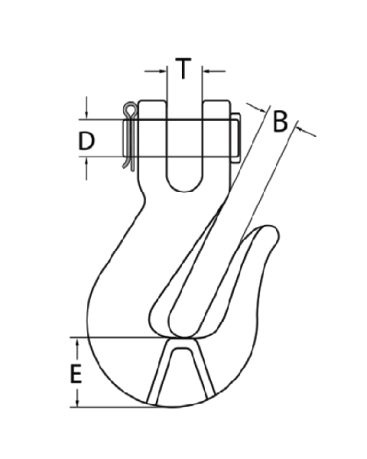

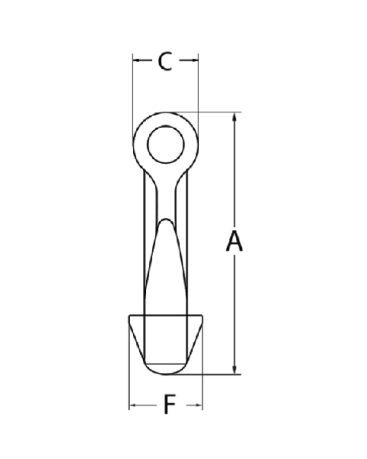

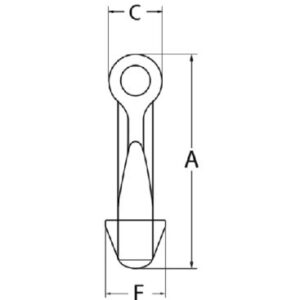

| SIZE (mm) | LOAD CAPACITY (kg) | WEIGHT (kg) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | T (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 6 | 2300 | 0.23 | 77 | 8.5 | 21 | 8.5 | 18.5 | 24.5 | 10 |
| 8 | 3800 | 0.35 | 95 | 12 | 23 | 11.5 | 24.5 | 31.5 | 11.5 |
| 10 | 6000 | 0.57 | 112 | 13 | 28 | 12.5 | 29 | 40 | 13 |
| 13 | 9000 | 0.92 | 136 | 16 | 32 | 16.8 | 44 | 43 | 16 |
