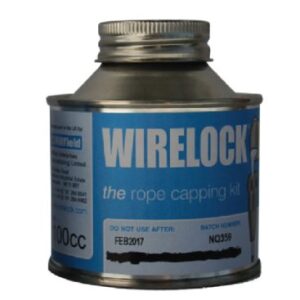

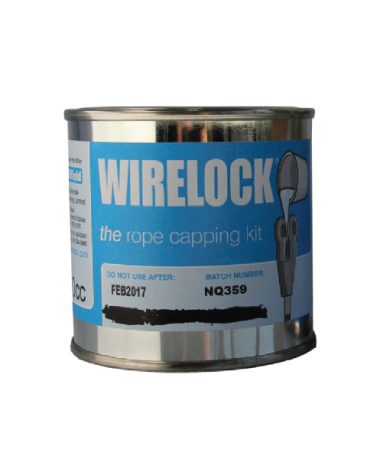

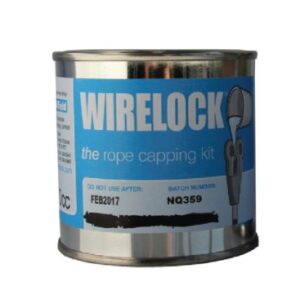

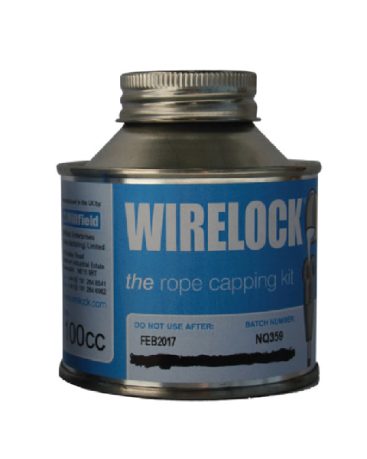

Wirelock is a two-part socketing compound used as a safe, no-heat alternative to white metal for terminating wire rope. It requires no special tools and can be poured on-site, even at low temperatures. Sockets can be loaded in as little as 50 minutes (at 18–24°C). Wirelock is lighter than white metal and is compatible with most commercial sockets and rope types. It also suits short basket, armoured, and umbilical cable applications. Not suitable for strong acids or alkaline environments.
- Description
Description
Features
Wirelock is a two pack socket capping compound that has the following advantages:
- No heat
- No Acid
- No hazardous molten metal
- No long cooling/curing process
- No annealing of wires of socket neck
- No guessing of temperature
- No loss of lubricant at socket neck
- No special storage conditions
- No expensive equipment
- Provides 100% efficiency
- Improves fatigue life
- Is suitable for operation in extremes of temperature
- Is approved b Lloyds Register of Shipping and Det Norske Veritas (D.N.V)
Specifications
| ROPE DIA. (mm) | VOLUME (cc) |
|---|---|
| 14-16 | 52 |
| 18-0 | 86 |
| 22 | 125 |
| 24-26 | 160 |
| 28 | 210 |
| 32-36 | 350 |
| 38 | 420 |
| 40 | 495 |
| 44-48 | 700 |
| 52 | 1265 |
| 56-60 | 1410 |
| 64 | 1830 |
| 0 | 2250 |
| 76 | 3160 |
| 83 | 3795 |
| 89-92 | 4920 |
| 96 | 5980 |
| 100-104 | 7730 |
