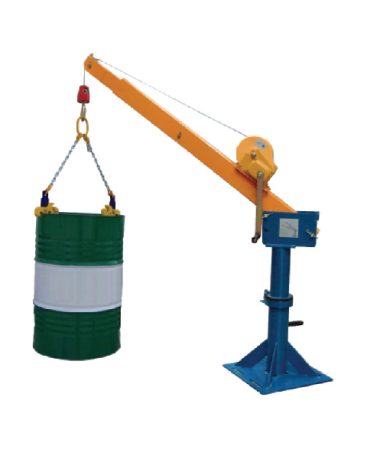

The My-T-Lift is a compact, 360° telescopic crane designed for safely lifting and positioning heavy loads up to 300kg. Ideal for mounting on trucks, trailers, pontoons and similar structures, it allows single-person operation in tight spaces. Choose between a manual winch with 6m rope or a 12/24V electric winch with 12m rope. Made from high-quality steel, the My-T-Lift folds down for convenient storage and delivers precision and reliability in demanding applications.
- Description
Description
Features
- 360° manual radial slew; with slipper bearing thrust race for ease of slewing motion
- Rugged structure with low maintenance powder coated finish
- Folds down when not in use
- Allows accurate placement of heavy loads, even in confined space
- Available with manual winch, 12 or 24 volt electric winch
- Optional drum lifting sling available

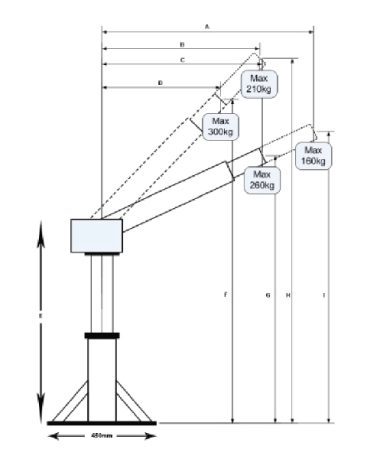

Specifications
| RATED CAPACITY (kg) | ROPE LENGTH (m) | WINCH TYPE | NET WEIGHT (kg) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 300 | Nil | Nil | 68 | 1790 | 1490 | 1290 | 1110 | 920 | 1730 | 1330 | 2030 | 1510 |
| 300 | 6 | Manual Brake | 78 | 1790 | 1490 | 1290 | 1110 | 920 | 1730 | 1330 | 2030 | 1510 |
| 300 | 12 | 12V DC | 83 | 1790 | 1490 | 1290 | 1110 | 920 | 1730 | 1330 | 2030 | 1510 |
| 300 | 12 | 24V DC | 83 | 1790 | 1490 | 1290 | 1110 | 920 | 1730 | 1330 | 2030 | 1510 |

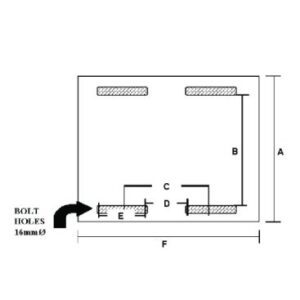

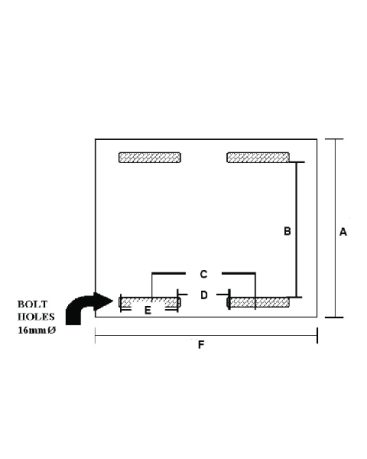

| BASE PLATE DIMENSIONS | |||||
|---|---|---|---|---|---|
| A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) |
| 455 | 379 | 195 | 70 | 123 | 450 |
