Description

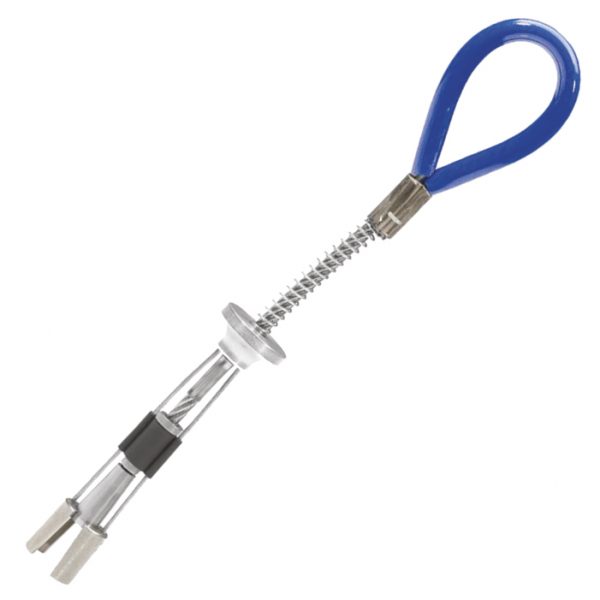

CT01 Spring Anchor
| Technical Information | |
|---|---|
| Maximum Capacity | 22kN |
| Type | Temporary Concrete |
| Main Cable | 7x19 Aircraft Cable |
| End Termination | 304 Stainless Steel |
| Spoons | 304 Stainless Steel |
| Bushing Guide | 304 Stainless Steel |
| Stop Sleeve | 304 Stainless Steel |
| Trigger | 6061 T-6 Aluminum |
| Spring | Zinc Coated Spring Steel |
| Swage | Zinc Coated Copper |
| Return Wire | 1x19 Aircraft Cable |
| Plastics | Blue Polyurethane |
CT02 Spring Anchor
| Technical Information | |
|---|---|
| Maximum Capacity | 44kN |
| Type | Temporary Concrete |
| Main Cable | 7x19 Aircraft Cable |
| Rotary Swage | 304 Stainless Steel |
| Spoons | 304 Stainless Steel |
| Cleaning Bushing | 304 Stainless Steel |
| Stop Sleeve | 304 Stainless Steel |
| Trigger | 6061 T-6 Aluminum |
| Spring | Zinc Coated Spring Steel |
| Swage | Zinc Coated Copper |
| Return Wire | 1x19 Galvanised Cable |
| Thimble | Green Polyurethane |
CT04 Swivel Anchor
| Technical Information | |
|---|---|
| Maximum Capacity | 44kN |
| Maximum Working Load | 907kg |
| Maximum Breaking Strength | 4536kg |
| Type | Temporary Concrete |
| Construction | Zinc Plated Forged Heat Treated Steel Alloy |
| Rotation | 360° |
| Flip | 180° |
| Persons | 4 |
RA1 Retrofit Purlin
| Technical Information | |
|---|---|
| Use | Retrofits to profile of roof sheeting |
| Maximum Capacity | 22kN |
| Standard | Tested to Standard AS/NZS1891.4 |
| Construction | Stainless Steel |
| Abseil Use | Yes |
SM1P Steel Sheet Anchor
| Technical Information | |
|---|---|
| Use | Universal Top Mount Kit Top Hat Plate |
| Maximum Capacity | 22kN |
| Weight | 1.68kg |
| Abseil Use | No |
TA1 Timber Rafter Anchor
| Technical Information | |
|---|---|
| Use | Timber Mount Anchor Kit |
| Construction | Stainless Steel/Tiletite Flashing |
| Maximum Capacity | 22kN |
| Weight | 1.99kg |
| Abseil Use | No |
